1220, 1225,1238, 1625, 1638, 1651
Availability: | |
---|---|
| |
▼Aviary Wire Netting Applications
★ Applications | ★ Location | ★ Environment |
ZOO | Aviary cage Side Mesh | Cold place |
Wildlife Zoo | Aviary cage SCREEN Mesh | Hot place |
PARK | Aviary Protective Mesh | Wet place |
Exhigition | Aviary Separated Mesh | Mountain place |
Children Zoo | Aviary Decorative Mesh | Wetlands place |
Aquarium | Aviary Safe Mesh | |
Museum |
▼ Advantages of "Stainless Steel Wire Rope Woven Mesh" used for Zoo Aviary Wire Netting
▼Material of stainless steel wire rope mesh: AISI 304 or 316 stainless steel
▼Stainless steel wire woven mesh appearance beautiful and gentle
▼Mesh panels of stainless steel wire rope mesh
▼The wire rope Diameters and mesh Aperture:
▼The stainless steel wire rope woven mesh are with the soft touching, can be stretched, folded, rolled and packed naturally
Stainless Steel Wire Rope Netting Mesh Application Lists for Aviary wire netting, bird park fence, aviary wire fencing, aviary mesh | |||||||
Model No. | Material | Wire rope dia. | Mesh opening | Weight | Application | ||
mm | inch | mm | inch | kg/m2 | |||
ZM1220 | SS304/316 | 1.2mm | 3/64" | 20mm x 20mm | 0.8" x 0.8" | 0.73 | Small bird netting, small aviary wire netting |
ZM1225 | SS304/316 | 1.2mm | 3/64" | 25.4mm x 25.4mm | 1" x 1" | 0.55 | small aviary wire nettingg, large aviary park netting |
ZM1230 | SS304/316 | 1.2mm | 3/64" | 30mm x 30mm | 1.2" x 1.2" | 0.45 | small aviary wire nettingg, large aviary park netting |
ZM1238 | SS304/316 | 1.2mm | 3/64" | 38mm x 38mm | 1.5" x 1.5" | 0.4 | aviary wire nettingg, large aviary park netting |
ZM1625 | SS304/316 | 1.6mm | 1/16" | 25.4mm x 25.4mm | 1" x 1" | 1.1 | small bird netting, aviary wire nettingg, like parrots |
ZM1630 | SS304/316 | 1.6mm | 1/16" | 30mm x 30mm | 1.2" x 1.2" | 0.9 | small bird netting, aviary wire nettingg, like parrots |
ZM1638 | SS304/316 | 1.6mm | 1/16" | 38mm x 38mm | 1.5" x 1.5" | 0.65 | bird netting, aviary wire nettingg, eagle, owl |
ZM1651 | SS304/316 | 1.6mm | 1/16" | 51mm x 51mm | 2" x 2" | 0.5 | large bird netting, aviary wire nettingg, like crane, peacock |
★ Completed zoo mesh products codes list table download click here:LIULIN ZOOMESH PRODUCT LIST.pdf
▼Stainless Steel Wire Rope Woven ZooMesh Key Points:
Min. breaking load (KN): | 3.2mm – 7.32; 2.4mm – 4.08; 2.0mm – 3.10; 1.6mm – 2.12; 1.2mm – 1.19 |
Wire rope construction: | 3.2mm – 7*19; all others – 7*7 |
Material group: | AISI 304, 304L , 316, 316L stainless steel |
Mesh panel size: | 35’ x 70’ (10.6m x 21.3m) or customers’ required sizes |
Mesh color: | Stainless steel natural color / Black color / Bronze color |
Packing: | the mesh will be rolled and packed in PP woven bag |
Country of Origin: | China |
Domestic shipping: | the mesh is available for shipping to all countries outside the China |
Shipping way: | by sea, by air, or by express like FedEx, DHL, TNT |
Price term: | EXW / FOB, CFR / CIF / L/C |

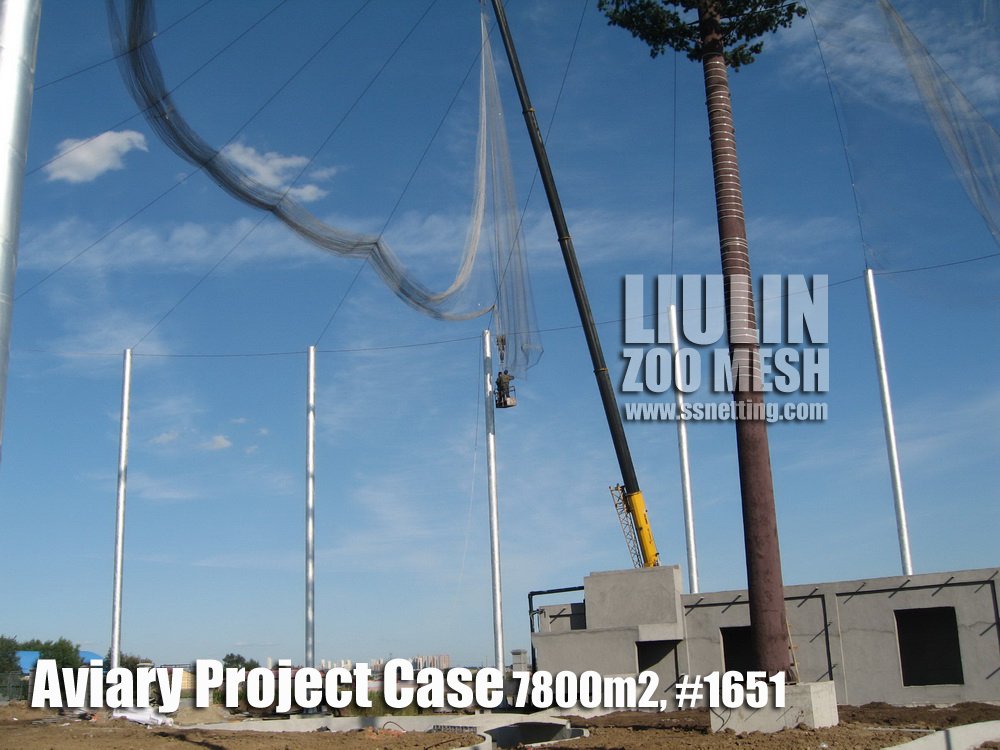

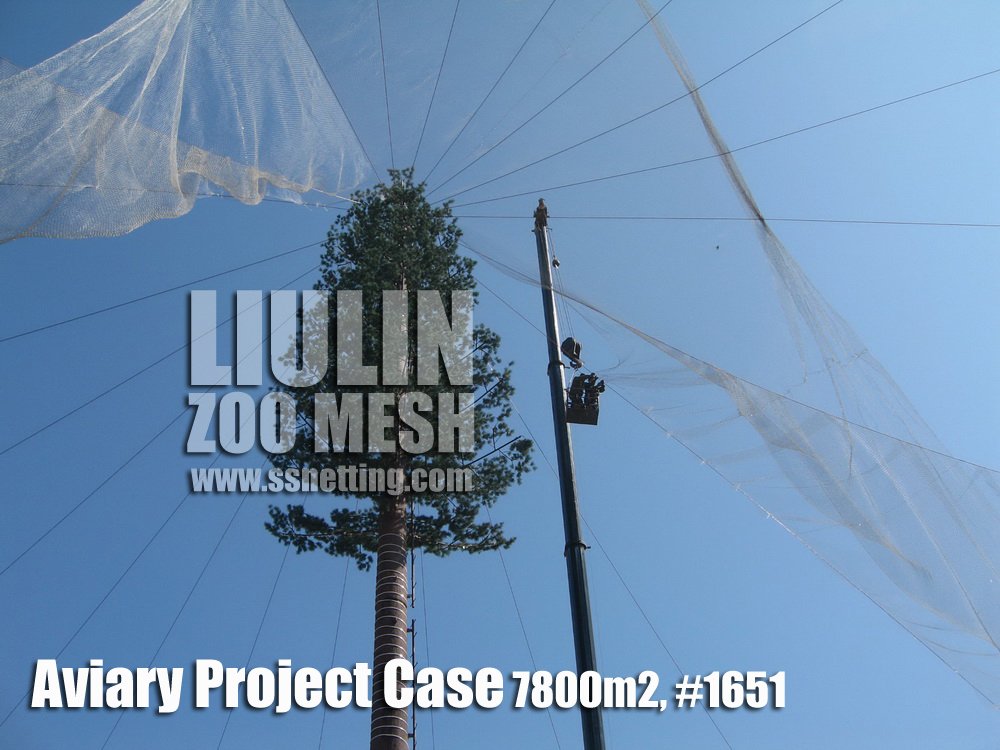

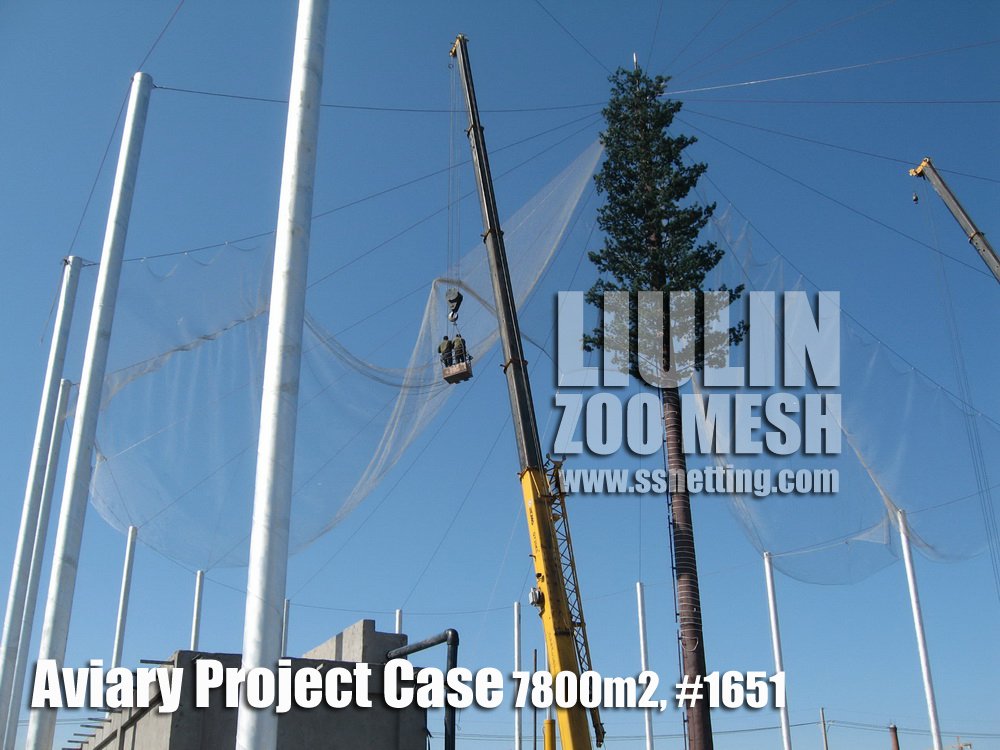

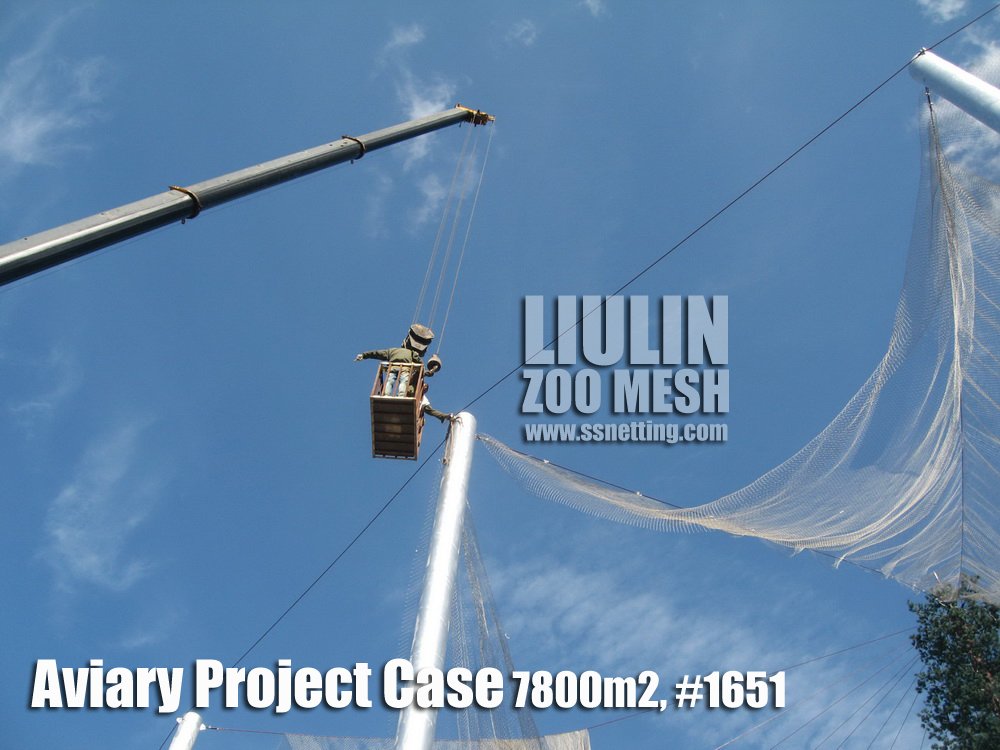

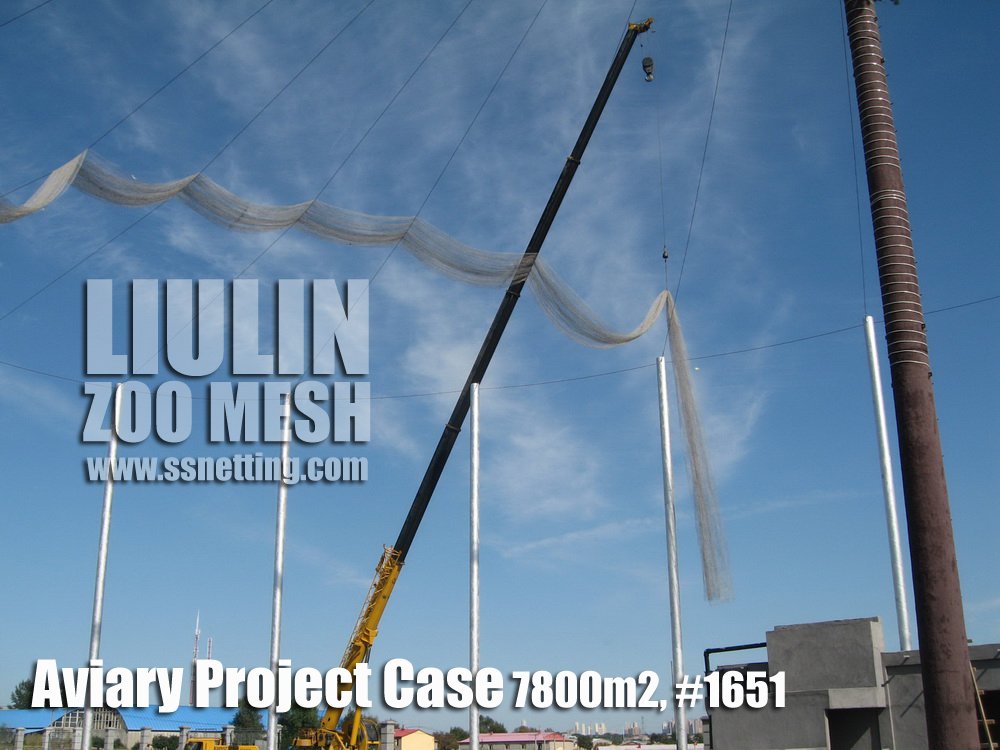

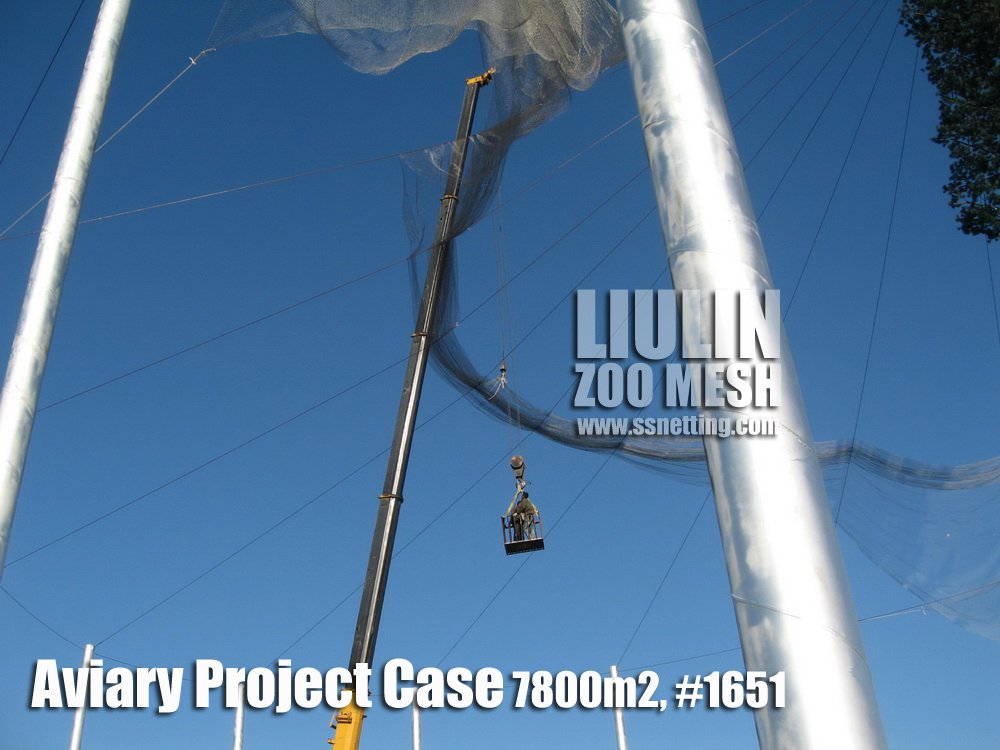

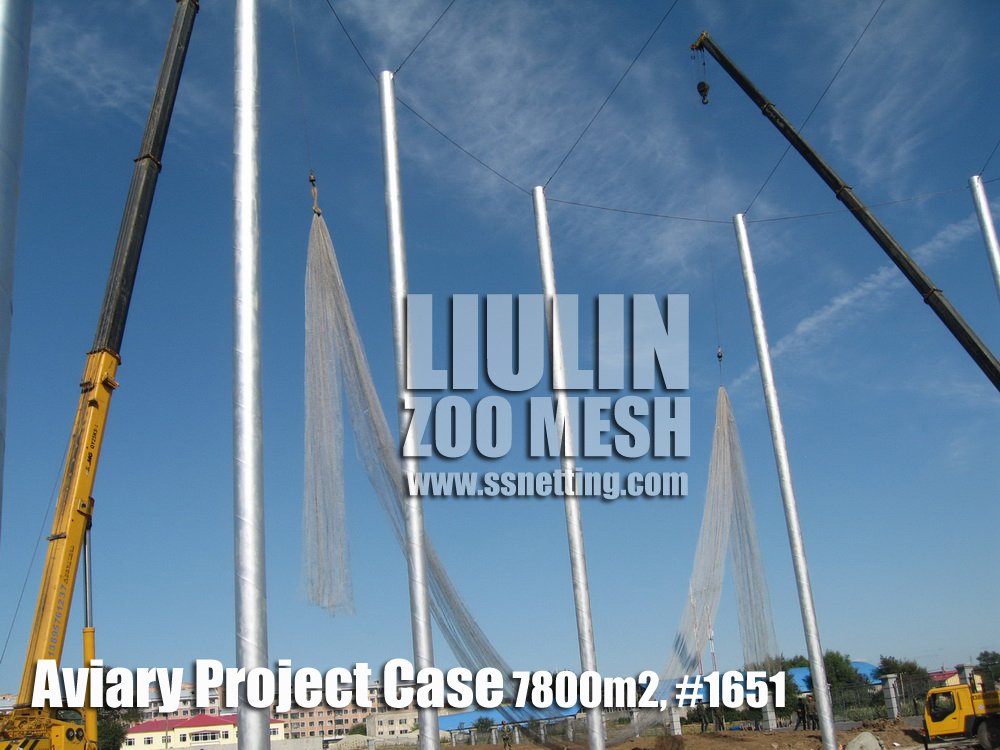

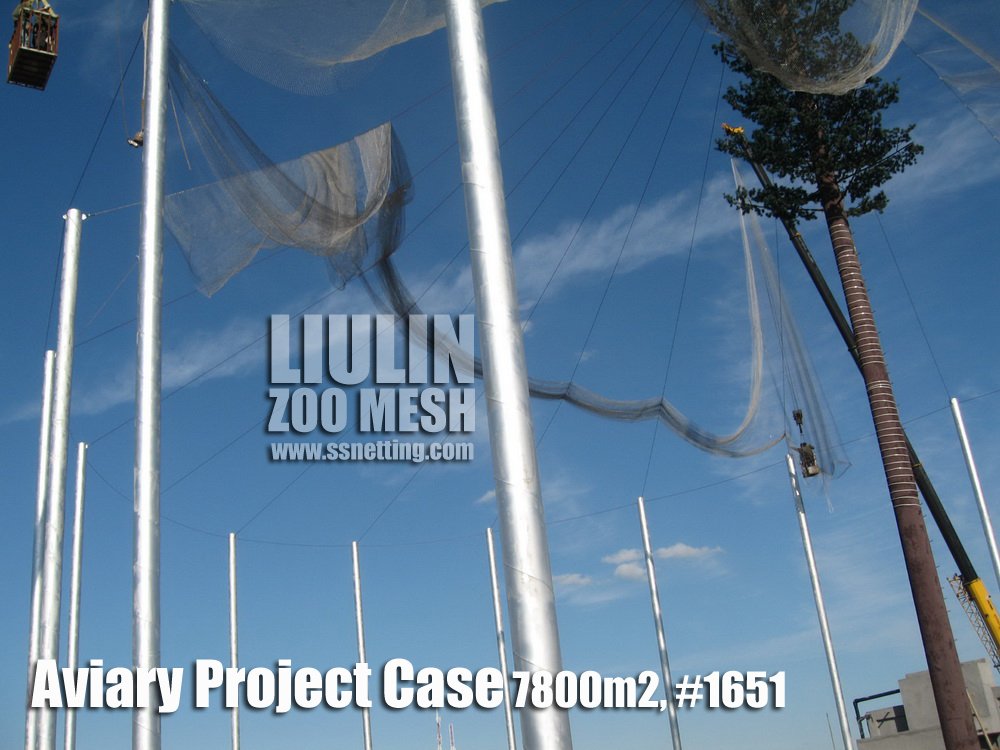

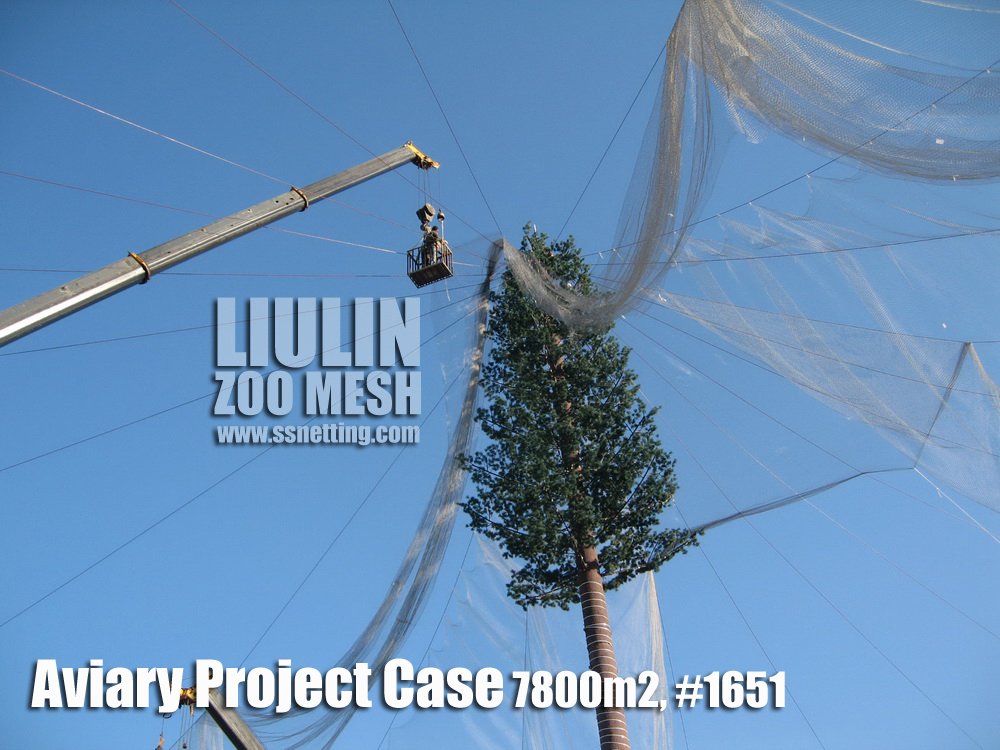

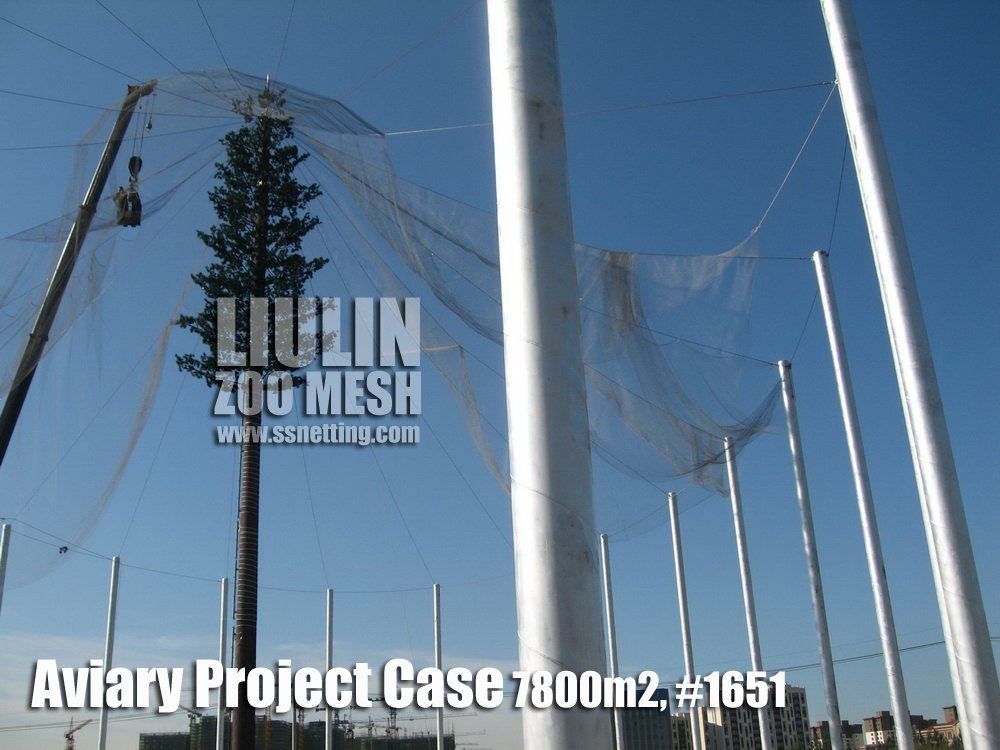

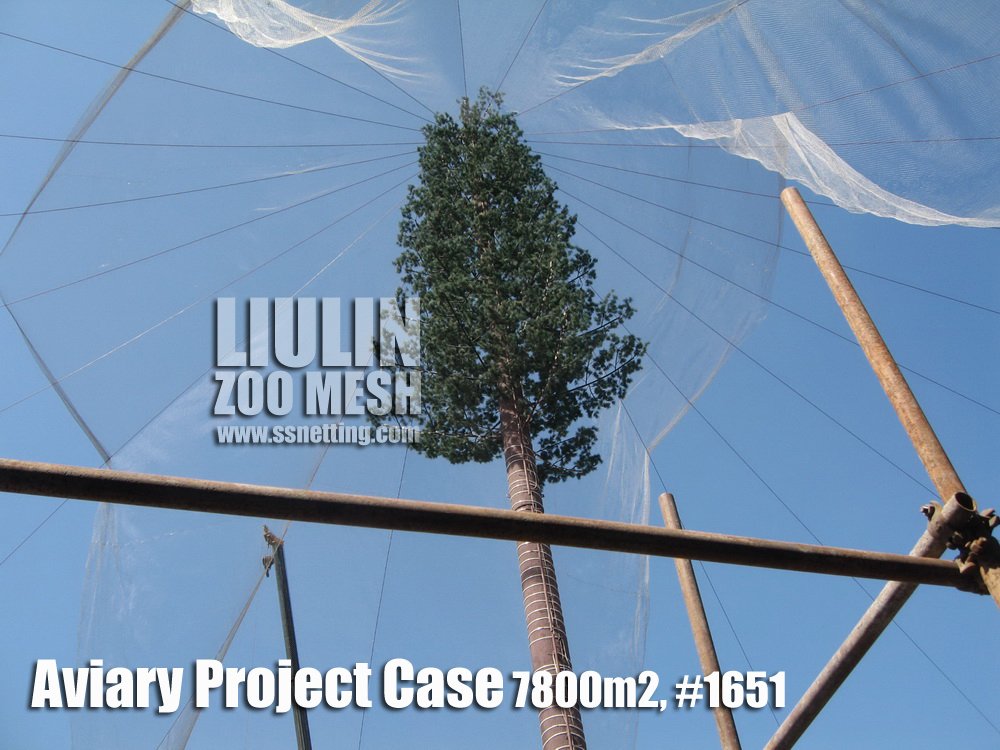

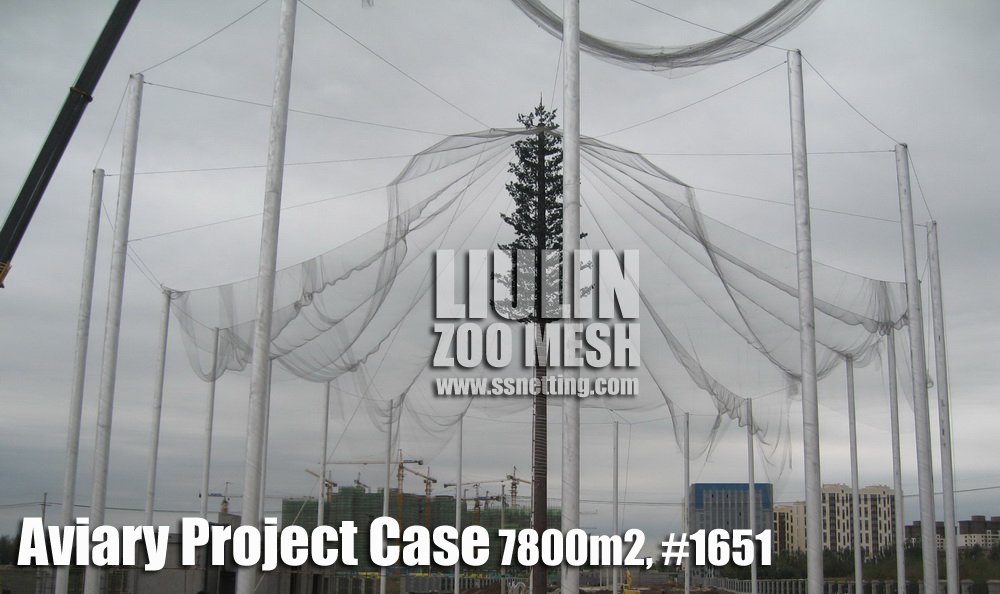

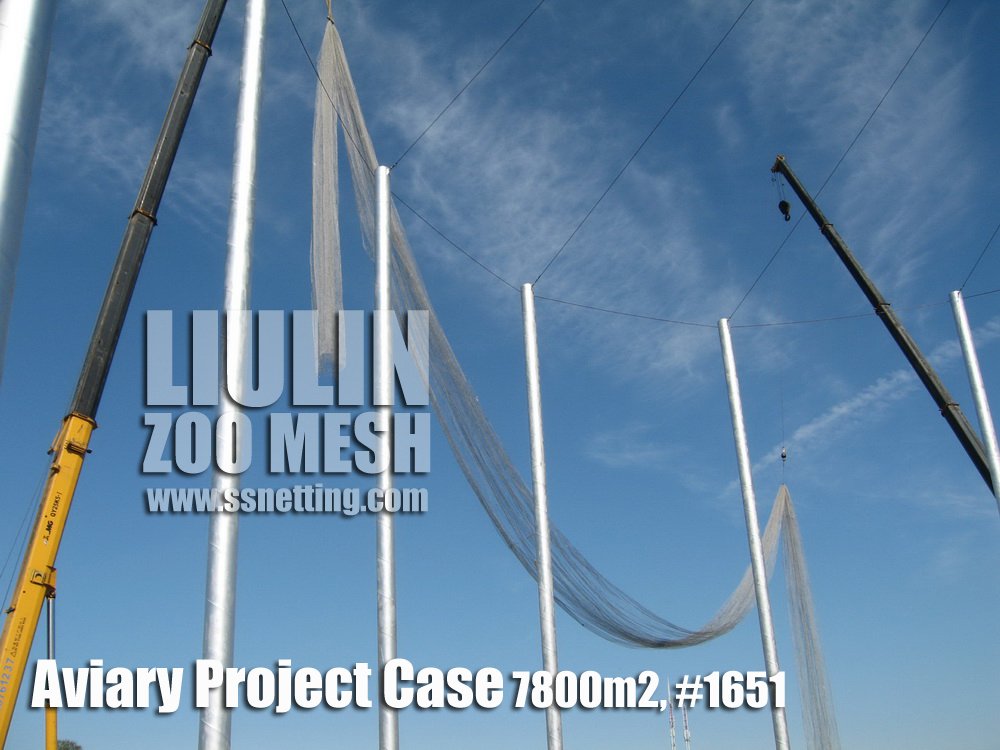

▼ Projects cases about zoo aviary netting, bird aviary fencing, aviary mesh netting
△ You can use the stainless steel wire netting mesh make a beautiful aviary park, aviary garden, zoo aviary exhibit, aviary museum or a small protective center as you want.
The stainless steel aviary wire nettingg mesh are hand woven by high quality 304 or 316 stainless steel wire ropes, this material can make the outdoor aviary netting & enclosure & fencing mesh will not rust, corrosion. The wire rope aviary netting can be used more than 30 years.
△ The above left pic are a zoo aviary mesh netting project in Chengdu zoo, China, the aviary wire fence netting are large can screen many kind of birds, and wholly place include trees, buildings, lake and other facility.
Now the aviary wire nettingg shape are more and more beatiful and fashion, the designers are ingenious. The liulin wire rope netting mesh are soft and flexible, can stretch wantonly, so can wholly meet and show the design, this also a landscape.
△ The above left picture are eagle mountain aviary park in Beijing, which has a special shape, 3D design, very beautiful.
As the bird aviary netting in zoos or parks, the safety are very important. Used this kind of stainless steel aviary netting mesh, you are no need to worry the birds will destroy the exhibit netting and out of the cage enclosures fencing, and not worry the wind and snow break the aviary fencing. We tested the Min.breaking load, the 1.2mm wire rope is 1190 Newtons. So the zoo mesh will wholly protect the visitors and birds security. After all, what is more important than security, right?
△ The above left picture is another bird aviary netting project, which feed kinds of crane birds, using the mesh code#1651, said, the wire rope diameter is 1.6mm, the mesh aperture is 51mm x 51mm.
The hand-woven wire rope netting mesh is more stronger, safety, durable, flexible, and beautiful than the traditional mesh, no need the onerous facilities, you will make a free shape bird aviary netting. Planting some rattan, will make a green protective screen, this also a landscape.
▼ Other applications of Bird Aviary Netting:
==>> Cylindrical Cage Netting Mesh, Animal Channel Fencing Mesh, Animal Tunnel Cage Netting | |
As the flexibility of stainless steel wire rope woven mesh, it can be used for "tunnel and channel fence of the animal cages". We can directly woven into a tubular style, but not the later connection. Mainly applied for the Monkey cage tunnel fence, Gorilla cages channel mesh, etc. This way could give more fun to the animals, also be applied for the connection of two non-adjacent cages. | |
==>>Birds aviary Cage Netting for Architectural & Decoration | |
★ Stadium fence, Sports fencing, Decoration mesh, Bridges protective fence, etc. In addition to animal fencing & enclosure & netting, the wire cable mesh can also be used for: Exterior decoration mesh, Engineering protection fence, Bridge guardrail fencing, Staircase handrail net, Stadium fence, Acrobatics fence, all kinds of security protection fence, municipal construction mesh, etc. numerous fields. |
▼ Package of Birds Aviary cage netting mesh:
▼ Birds Aviary cage netting mesh installation Instructions:
▼ Zoo mesh Service:
▼ More Information you may need, click the button to you want:
▼Aviary Wire Netting Applications
★ Applications | ★ Location | ★ Environment |
ZOO | Aviary cage Side Mesh | Cold place |
Wildlife Zoo | Aviary cage SCREEN Mesh | Hot place |
PARK | Aviary Protective Mesh | Wet place |
Exhigition | Aviary Separated Mesh | Mountain place |
Children Zoo | Aviary Decorative Mesh | Wetlands place |
Aquarium | Aviary Safe Mesh | |
Museum |
▼ Advantages of "Stainless Steel Wire Rope Woven Mesh" used for Zoo Aviary Wire Netting
▼Material of stainless steel wire rope mesh: AISI 304 or 316 stainless steel
▼Stainless steel wire woven mesh appearance beautiful and gentle
▼Mesh panels of stainless steel wire rope mesh
▼The wire rope Diameters and mesh Aperture:
▼The stainless steel wire rope woven mesh are with the soft touching, can be stretched, folded, rolled and packed naturally
Stainless Steel Wire Rope Netting Mesh Application Lists for Aviary wire netting, bird park fence, aviary wire fencing, aviary mesh | |||||||
Model No. | Material | Wire rope dia. | Mesh opening | Weight | Application | ||
mm | inch | mm | inch | kg/m2 | |||
ZM1220 | SS304/316 | 1.2mm | 3/64" | 20mm x 20mm | 0.8" x 0.8" | 0.73 | Small bird netting, small aviary wire netting |
ZM1225 | SS304/316 | 1.2mm | 3/64" | 25.4mm x 25.4mm | 1" x 1" | 0.55 | small aviary wire nettingg, large aviary park netting |
ZM1230 | SS304/316 | 1.2mm | 3/64" | 30mm x 30mm | 1.2" x 1.2" | 0.45 | small aviary wire nettingg, large aviary park netting |
ZM1238 | SS304/316 | 1.2mm | 3/64" | 38mm x 38mm | 1.5" x 1.5" | 0.4 | aviary wire nettingg, large aviary park netting |
ZM1625 | SS304/316 | 1.6mm | 1/16" | 25.4mm x 25.4mm | 1" x 1" | 1.1 | small bird netting, aviary wire nettingg, like parrots |
ZM1630 | SS304/316 | 1.6mm | 1/16" | 30mm x 30mm | 1.2" x 1.2" | 0.9 | small bird netting, aviary wire nettingg, like parrots |
ZM1638 | SS304/316 | 1.6mm | 1/16" | 38mm x 38mm | 1.5" x 1.5" | 0.65 | bird netting, aviary wire nettingg, eagle, owl |
ZM1651 | SS304/316 | 1.6mm | 1/16" | 51mm x 51mm | 2" x 2" | 0.5 | large bird netting, aviary wire nettingg, like crane, peacock |
★ Completed zoo mesh products codes list table download click here:LIULIN ZOOMESH PRODUCT LIST.pdf
▼Stainless Steel Wire Rope Woven ZooMesh Key Points:
Min. breaking load (KN): | 3.2mm – 7.32; 2.4mm – 4.08; 2.0mm – 3.10; 1.6mm – 2.12; 1.2mm – 1.19 |
Wire rope construction: | 3.2mm – 7*19; all others – 7*7 |
Material group: | AISI 304, 304L , 316, 316L stainless steel |
Mesh panel size: | 35’ x 70’ (10.6m x 21.3m) or customers’ required sizes |
Mesh color: | Stainless steel natural color / Black color / Bronze color |
Packing: | the mesh will be rolled and packed in PP woven bag |
Country of Origin: | China |
Domestic shipping: | the mesh is available for shipping to all countries outside the China |
Shipping way: | by sea, by air, or by express like FedEx, DHL, TNT |
Price term: | EXW / FOB, CFR / CIF / L/C |
▼ Projects cases about zoo aviary netting, bird aviary fencing, aviary mesh netting
△ You can use the stainless steel wire netting mesh make a beautiful aviary park, aviary garden, zoo aviary exhibit, aviary museum or a small protective center as you want.
The stainless steel aviary wire nettingg mesh are hand woven by high quality 304 or 316 stainless steel wire ropes, this material can make the outdoor aviary netting & enclosure & fencing mesh will not rust, corrosion. The wire rope aviary netting can be used more than 30 years.
△ The above left pic are a zoo aviary mesh netting project in Chengdu zoo, China, the aviary wire fence netting are large can screen many kind of birds, and wholly place include trees, buildings, lake and other facility.
Now the aviary wire nettingg shape are more and more beatiful and fashion, the designers are ingenious. The liulin wire rope netting mesh are soft and flexible, can stretch wantonly, so can wholly meet and show the design, this also a landscape.
△ The above left picture are eagle mountain aviary park in Beijing, which has a special shape, 3D design, very beautiful.
As the bird aviary netting in zoos or parks, the safety are very important. Used this kind of stainless steel aviary netting mesh, you are no need to worry the birds will destroy the exhibit netting and out of the cage enclosures fencing, and not worry the wind and snow break the aviary fencing. We tested the Min.breaking load, the 1.2mm wire rope is 1190 Newtons. So the zoo mesh will wholly protect the visitors and birds security. After all, what is more important than security, right?
△ The above left picture is another bird aviary netting project, which feed kinds of crane birds, using the mesh code#1651, said, the wire rope diameter is 1.6mm, the mesh aperture is 51mm x 51mm.
The hand-woven wire rope netting mesh is more stronger, safety, durable, flexible, and beautiful than the traditional mesh, no need the onerous facilities, you will make a free shape bird aviary netting. Planting some rattan, will make a green protective screen, this also a landscape.
▼ Other applications of Bird Aviary Netting:
==>> Cylindrical Cage Netting Mesh, Animal Channel Fencing Mesh, Animal Tunnel Cage Netting | |
As the flexibility of stainless steel wire rope woven mesh, it can be used for "tunnel and channel fence of the animal cages". We can directly woven into a tubular style, but not the later connection. Mainly applied for the Monkey cage tunnel fence, Gorilla cages channel mesh, etc. This way could give more fun to the animals, also be applied for the connection of two non-adjacent cages. | |
==>>Birds aviary Cage Netting for Architectural & Decoration | |
★ Stadium fence, Sports fencing, Decoration mesh, Bridges protective fence, etc. In addition to animal fencing & enclosure & netting, the wire cable mesh can also be used for: Exterior decoration mesh, Engineering protection fence, Bridge guardrail fencing, Staircase handrail net, Stadium fence, Acrobatics fence, all kinds of security protection fence, municipal construction mesh, etc. numerous fields. |
▼ Package of Birds Aviary cage netting mesh:
▼ Birds Aviary cage netting mesh installation Instructions:
▼ Zoo mesh Service:
▼ More Information you may need, click the button to you want:
This tab include the details of:
1. Zoo Mesh Installation
2. Mesh Panels Connection
3. Fitting and Tools
4. Other notes ( About Special Shape installation )
1. Install the stainless steel wire rope zoomesh
▼ Specific installation methods of wire rope netting mesh
→ PIC A1: Preparation work
1. the bags of wire rope woven mesh you received
2. open the bags you will see the mesh rolled
3. expand the zoo mesh, the natural mesh each angles are not 90°
4. some of these fittings: wire ropes, ferrules, tongs, ect
Then, install according to the following methods.
The diagram of standard installing method of stainless steel rope woven mesh.
→ PIC A2, A3, A4: Install steps
Step 1, Determine the width and height of mesh direction according the pic A2;
Step 2, First fix the two corners with cable ties, said, first fix 1 and 1 mark at;
Step 3, Fix TOP line A;
Step 4, Fix height direction's 2 and 2, 3 and 3, 4 and 4,5 and 5... codes at the left and right followed by uniform in pic A3
Step 5, Fix the mesh to the bottom;
Step 6, Using the wire ropes back and forth between the mesh and frame, this method is the most common way, fast and strong.
Step 7, The ends of both perimeter ropes must be threaded through a ferrule and then pulled taught. Now, all the cable ties can be remove.
Step 8. Swage the ferrule with the swaging tool, and cut off lose ends of the perimeter rope. Now, each of the mesh angle is 90 °.
Zoo aviary netting mesh installation details -1:
Have the wire ropes back and forth between the zoo mesh and frame, this method the most common way, fast and strong.
△ Installation details of edges of wire rope netting mesh
Zoo aviary netting mesh installation details -2:
Using the ferrules with "eyes", in this way, we need to reserve the ferrules with "eyes" on the four edges during the production. The specific method is also to use wire rope go through the ferrules, and make it back and forth between the frame and the ferrules with "eyes". The benefits of doing so so very beautiful, and always adopted on the decoration. If you have interests, please specify when ordering.
6. Join the wire rope netting mesh panels (Vertical and horizontal)
4. Other Notes ( About Special Shape installation )
The stainless steel rope mesh can only be produced in rectangular shape. If you need special shape, the only way is to cut off the excess part after the installing, say, the four edges of the whole mesh has been fixed. Very important, please note do not trim the zoo mesh before the installation.
This tab include the details of:
1. Zoo Mesh Installation
2. Mesh Panels Connection
3. Fitting and Tools
4. Other notes ( About Special Shape installation )
1. Install the stainless steel wire rope zoomesh
▼ Specific installation methods of wire rope netting mesh
→ PIC A1: Preparation work
1. the bags of wire rope woven mesh you received
2. open the bags you will see the mesh rolled
3. expand the zoo mesh, the natural mesh each angles are not 90°
4. some of these fittings: wire ropes, ferrules, tongs, ect
Then, install according to the following methods.
The diagram of standard installing method of stainless steel rope woven mesh.
→ PIC A2, A3, A4: Install steps
Step 1, Determine the width and height of mesh direction according the pic A2;
Step 2, First fix the two corners with cable ties, said, first fix 1 and 1 mark at;
Step 3, Fix TOP line A;
Step 4, Fix height direction's 2 and 2, 3 and 3, 4 and 4,5 and 5... codes at the left and right followed by uniform in pic A3
Step 5, Fix the mesh to the bottom;
Step 6, Using the wire ropes back and forth between the mesh and frame, this method is the most common way, fast and strong.
Step 7, The ends of both perimeter ropes must be threaded through a ferrule and then pulled taught. Now, all the cable ties can be remove.
Step 8. Swage the ferrule with the swaging tool, and cut off lose ends of the perimeter rope. Now, each of the mesh angle is 90 °.
Zoo aviary netting mesh installation details -1:
Have the wire ropes back and forth between the zoo mesh and frame, this method the most common way, fast and strong.
△ Installation details of edges of wire rope netting mesh
Zoo aviary netting mesh installation details -2:
Using the ferrules with "eyes", in this way, we need to reserve the ferrules with "eyes" on the four edges during the production. The specific method is also to use wire rope go through the ferrules, and make it back and forth between the frame and the ferrules with "eyes". The benefits of doing so so very beautiful, and always adopted on the decoration. If you have interests, please specify when ordering.
6. Join the wire rope netting mesh panels (Vertical and horizontal)
4. Other Notes ( About Special Shape installation )
The stainless steel rope mesh can only be produced in rectangular shape. If you need special shape, the only way is to cut off the excess part after the installing, say, the four edges of the whole mesh has been fixed. Very important, please note do not trim the zoo mesh before the installation.
This tab include the details of:
1. Free Samples
2. Packing zoo mesh
3. Shipping zoo mesh
4. Order Process
2) Let us have your Freight Collect Account No. you registered in the above couriers; we will arrange the shipment by contacting their local branches.
2. Packing the wire rope bird netting zoo mesh
Mesh Panel Standard size is 35ft x 70ft ( 10.6m x 21.3m )
Mesh can be produced as customers' required sizes, but each panel is better not large than 10.6m x 21.3m, for convenient to production, shipping and installation.
The Size of " Bulk Roll " :
Usually, the size of bulk roll is approx. 700mm X 700mm X 600mm per 100kg, in the cubic shape, the measurement is approx. 0.3M3. It may vary due to the size of mesh you ordered.
3. Shipping the stainless steel aviary netting mesh
Ways of shipment | shipping time | destination | costs | pick up or not |
By sea | 20-35 days | nearest sea port | the lowest costs | pick up at seaport warehouse |
By air | 7-15 days | nearest air port | high costs than by sea | pick up at airport warehouse |
By express | 3-10 day | door to door | the highest costs | No need to pick up |
Our nearest air port: BEIJING, CHINA
△Packing and Shipping the stainless steel wire netting mesh
02.Customers remit a part of amount as deposit, we arrange producing the mesh.
03.Production completed, customers pay for the balance, we delivery the goods.
Now, start ordering!
This tab include the details of:
1. Free Samples
2. Packing zoo mesh
3. Shipping zoo mesh
4. Order Process
2) Let us have your Freight Collect Account No. you registered in the above couriers; we will arrange the shipment by contacting their local branches.
2. Packing the wire rope bird netting zoo mesh
Mesh Panel Standard size is 35ft x 70ft ( 10.6m x 21.3m )
Mesh can be produced as customers' required sizes, but each panel is better not large than 10.6m x 21.3m, for convenient to production, shipping and installation.
The Size of " Bulk Roll " :
Usually, the size of bulk roll is approx. 700mm X 700mm X 600mm per 100kg, in the cubic shape, the measurement is approx. 0.3M3. It may vary due to the size of mesh you ordered.
3. Shipping the stainless steel aviary netting mesh
Ways of shipment | shipping time | destination | costs | pick up or not |
By sea | 20-35 days | nearest sea port | the lowest costs | pick up at seaport warehouse |
By air | 7-15 days | nearest air port | high costs than by sea | pick up at airport warehouse |
By express | 3-10 day | door to door | the highest costs | No need to pick up |
Our nearest air port: BEIJING, CHINA
△Packing and Shipping the stainless steel wire netting mesh
02.Customers remit a part of amount as deposit, we arrange producing the mesh.
03.Production completed, customers pay for the balance, we delivery the goods.
Now, start ordering!
Mesh code: #1651
ZooMesh wire rope dia: 1.6mm (1/16")
ZooMesh aperture: 51mm x 51mm (2" x 2")
We had the privilege of participating in the installation phase and witnessed the installation process. Now share the pictures for reference.
