Stainless Steel Cable Mesh 3/64", 0.8" X 0.8"; (1.2mm, 20mm X 20mm)

Share to:

The Stainless steel cable mesh code 1220 with diameter 3/64" ( 1.2mm), and aperture 0.8" x 0.8" (20mm x 20mm) suitable for kinds of small sizes birds' netting, small animal fence mesh, and other protective place.
> by mm details:
Steel wire rope Diameter: 1.2mm
Mesh aperture: 20mm x 20mm
> by inch detdails:
Steel wire rope Diameter: 3/64 inch
Mesh aperture: 0.8 inch x 0.8 inch

  • 1220
Quantity:

INTRODUCTION

Stainless steel cable mesh code 1220:
3/64", 0.8" x 0.8",(1.2mm, 20mm x 20mm)


Stainless steel cable mesh also could be called: Stainless steel cable mesh, Stainless steel wire rope woven mesh, Stainless steel wire rope knotted mesh, flexible stainless steel cable mesh, Hand woven wire cable mesh, stainless steel zoo mesh, and so on.




▼ The specification details about Stainless steel cable mesh code 1220: 3/64", 0.8" x 0.8" (1.2mm, 20mm x 20mm):



> by mm details:

Steel wire rope Diameter: 1.2mm

Mesh aperture: 20mm x 20mm

> by inch detdails:

Steel wire rope Diameter: 3/64 inch

Mesh aperture: 0.8 inch x 0.8 inch



▼More details about stainless steel cable mesh code #1220 are as follow:



Zoomesh material: AISI 304/316 Stainless steel International standard

Wire rope construction: 7 x 7 group

Mesh panel size: customers' required sizes,

Height: 1' to 35';

Width: 1' x 70'

Mesh color: stainless steel natural color, or black oxide

Packing: the mesh will be rolled and packed in PP woven bag

Country of Origin: China

Domestic shipping: the mesh is available for shipping to all countries outside the China

Shipping way: by sea, by air, or by express

Price term:  we receive FOB, CFR / CIF payment


▼ The advantages of Stainless steel cable mesh:



1. Stainless steel wire rope woven mesh with Light weight, high strength, good flexibility, excellent performance in corrosion resistance /fatigue resistance/impact resistance breaking force, strong and durable overall structure, with a service life of more than 30 years.

2.
Stainless steel wire rope woven mesh close to nature, environmentally-friendly, efficient in protection of bird feathers and animal skin, efficient in against nibbles of rodents or other animals, providing a safe and comfortable living conditions.


3. Stainless steel wire rope woven mesh with High perspectivity, luxurious appearance, innovative style, able to blend with the surroundings, equipped with great decorative and protective effects.


▼ The application of stainless steel cable mesh code 1220: 3/64", 0.8" x 0.8", (1.2mm, 20mm x 20mm)



The Stainless steel cable mesh code #1220 suitable for kinds of small sizes birds' nettingsmall animal fence mesh, and other protective fence place.





Images introduction
of Stainless steel cable mesh 3/64", 0.8" x 0.8" (1.2mm, 20mm x 20mm)



 The stainless steel cable mesh is a kind of flexible mesh, can be stretch, with the mesh knots will never move and loose.



stainless steel zoo mesh 0.8 inch.jpg



▼ Material of stainless steel cable mesh 3/64", 0.8" x 0.8",(1.2mm, 20mm x 20mm):

AISI 304 or 316 stainless steel



stainless steel material wire rope mesh.jpg
Chemical composition of stainless steel zoo mesh

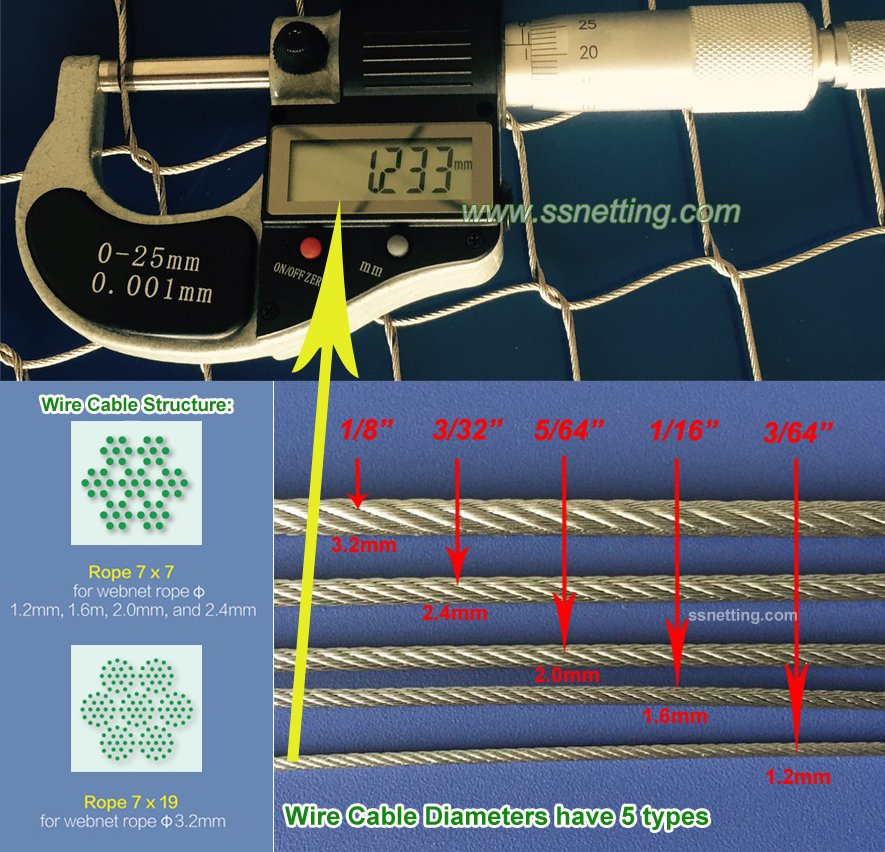

▼ The wire rope diameters of stainless steel cable mesh 3/64", 0.8" x 0.8", (1.2mm, 20mm x 20mm)

Diameter = 3/64inch, 1.2mm



stainless steel wire rope mesh-1.2mm



▼ The mesh aperture of stainless steel cable mesh 3/64", 0.8" x 0.8", (1.2mm, 20mm x 20mm)

X = 0.8 inch x 0.8 inch, 20mm x 20mm



0.8 inch stainless steel wire rope mesh.jpg



▼ Comparison of the stainless steel cable mesh 3/64", 0.8" x 0.8" and A4 paper:

Download the picture for print: stainless steel wire rope mesh code 1220.pdf



stainless steel wire rope mesh 1220

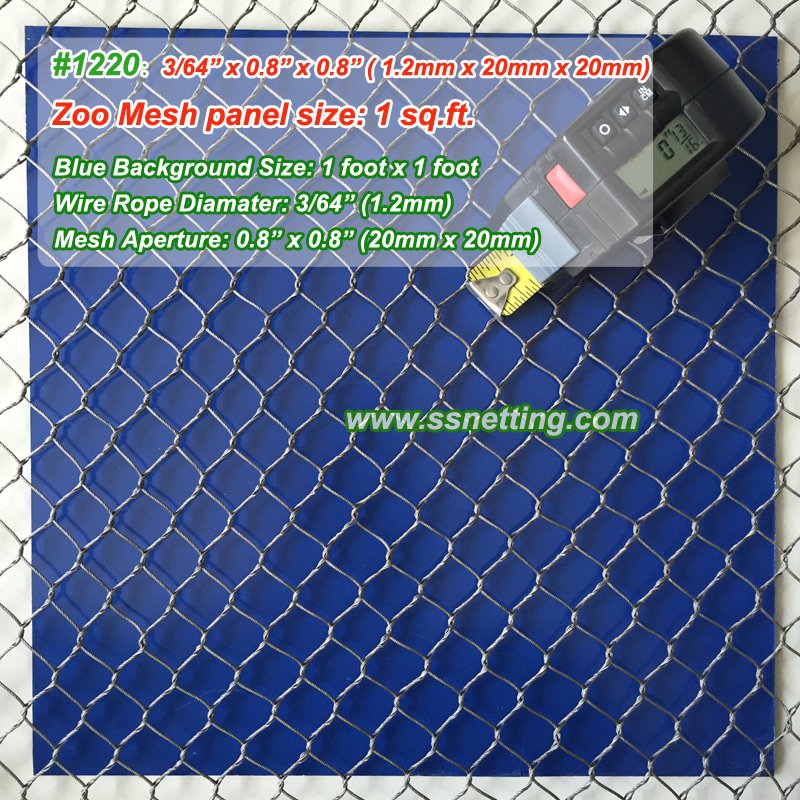

▼ Panel size: 1 sq.ft. of Stainless steel cable mesh code #1220


stainless steel wire rope mesh-1220-800



▼ Mesh structure: Zoom in carefully look at the Mesh structure


zoo mesh construction of hand woven wire rope netting mesh



details of stainless steel wire rope mesh.jpg

▼ Mesh edge: Look at the Mesh edge details carefully



edges of zoo mesh details.jpg


▼ Mesh panels of stainless steel cable mesh



zoo mesh panels and size.jpg



▼ Other Application of stainless steel cable mesh



Application of stainless steel wire rope mesh.jpg



▼ The installation of stainless steel cable mesh



 installation of wire rope mesh 3 inch.jpg

install detail the wire rope mesh.jpg



▼ The stainless steel wire rope woven mesh are with the soft touching, can be stretched, folded, rolled and packed naturally.



rolling and packing the stainless steel rope mesh.jpg



▼ shipping ways you can select



shipping ways of wire rope netting mesh.jpg



Leave massage on our web or contact us directly now, we will reply you promptly.



tag:stainless steel rope mesh 0.8 inch    smallest size zoo mesh

Price term:  we receive FOB, CFR / CIF payment

Price: Contact us to get the newest price quotation



▼ The advantages of Stainless steel wire rope mesh:



1. Stainless steel wire rope woven mesh with Light weight, high strength, good flexibility, excellent performance in corrosion resistance /fatigue resistance/impact resistance breaking force, strong and durable overall structure, with a service life of more than 30 years.

2.
Stainless steel wire rope woven mesh close to nature, environmentally-friendly, efficient in protection of bird feathers and animal skin, efficient in against nibbles of rodents or other animals, providing a safe and comfortable living conditions.


3. Stainless steel wire rope woven mesh with High perspectivity, luxurious appearance, innovative style, able to blend with the surroundings, equipped with great decorative and protective effects.
