Flexible Metal Wire Mesh 1/16", 2.4" X 2.4", ( 1.6mm, 60mm X 60mm)

loading

Share to:
sharethis sharing button
The flexible metal wire mesh code #1660: with diameter 1/16"(1.6mm), aperture 2.4" x 2.4" (60mm x 60mm) has light weight, high strength, good flexibility, excellent performance in corrosion resistance /fatigue resistance/impact resistance breaking force, strong and durable overall structure, with a service life of more than 30 years..
>by mm details:
Steel wire rope Diameter: 1.6mm
Mesh aperture: 60mm x 60mm
>by inch detdails:
Steel wire rope Diameter: 1/16 inch
Mesh aperture: 2.4 inch x 2.4 inch
  • 1660

Availability:
Quantity:

INTRODUCTION

Flexible metal wire mesh code 1660:

1/16", 2.4" x 2.4", ( 1.6mm, 60mm x 60mm)



Flexible metal wire mesh also could be called:
Stainless steel CABLE mesh,
Stainless steel wire rope WOVEN mesh,
Stainless steel wire rope KNOTTED mesh,
FLEXIBLE flexible metal wire mesh,
Hand woven wire cable mesh,
Stainless steel ZOO MESH, and so on.



▼The specification details about flexible metal wire mesh code #1660: 1/16", 2.4" x 2.4", ( 1.6mm, 60mm x 60mm):



> by mm details:

Steel wire rope Diameter: 1.6mm

Mesh aperture: 60mm x 60mm

> by inch detdails:

Steel wire rope Diameter: 1/16 inch

Mesh aperture: 2.4 inch x 2.4 inch



▼ More parameter details about Stainless steel zoo mesh code #1660:



Zoomesh material: AISI 304/316 Stainless steel International standard

Min. breaking load (KN):  1.6mm – 2120N

Wire rope construction: 7 x 7 group

Mesh panel size: customers' required sizes,

       Height: 1' to 35';

       Width: 1' x 70'

Mesh color: stainless steel natural color, or black oxide

Packing: the mesh will be rolled and packed in PP woven bag

Country of Origin: China

Domestic shipping: the mesh is available for shipping to all countries outside the China

Shipping way: by sea, by air, or by express

Price term:  we receive FOB, CFR / CIF payment

Price: Contact us to get the newest price quotation



▼ The advantages of Flexible metal wire mesh:



1. Light weight, high strength, good flexibility, excellent performance in corrosion resistance /fatigue resistance/impact resistance breaking force, strong and durable overall structure, with a service life of more than 30 years.

2. Close to nature, environmentally-friendly, efficient in protection of bird feathers and animal skin, efficient in against nibbles of rodents or other animals, providing a safe and comfortable living conditions.

3. High perspectivity, luxurious appearance, innovative style, able to blend with the surroundings, equipped with great decorative and protective effects.



▼ The application of Flexible metal wire mesh code #1660: 1/16", 2.4" x 2.4", ( 1.6mm, 60mm x 60mm):



The mesh code #1660 suitable for animals or birds enclosure fence netting mesh, like Crane cage nettingMonkey enclosure mesh, small cat animal cage fence enclosure netting, and other similar animal fence netting.






Images Introduction

of Flexible metal wire mesh code 1660: 1/16", 2.4" x 2.4", ( 1.6mm, 60mm x 60mm)



The flexible metal wire mesh is a kind of flexible mesh, can be stretch, with the mesh knots will never move and loose.



stainless steel wire rope mesh is a kind of flexible mesh, can be stretch, with the mesh knots will never move and loose



Material of flexible metal wire mesh code 1660: High quality AISI 304, 304L or 316, 316L stainless steel, in line with international standards.



stainless steel cable mesh using high quality AISI304/316 material group

Chemical composition of stainless steel wire rope mesh



▼ The wire rope diameters of flexible metal wire mesh code 1660:

Diameter = 1/16inch, 1.6mm



stainless steel wire rope mesh-1.6mm



▼ The mesh aperture of flexible metal wire mesh code 1660:

X = 2.4 inch x 2.4 inch,

X = 60mm x 60mm



mesh aperture of stainless steel wire rope mesh

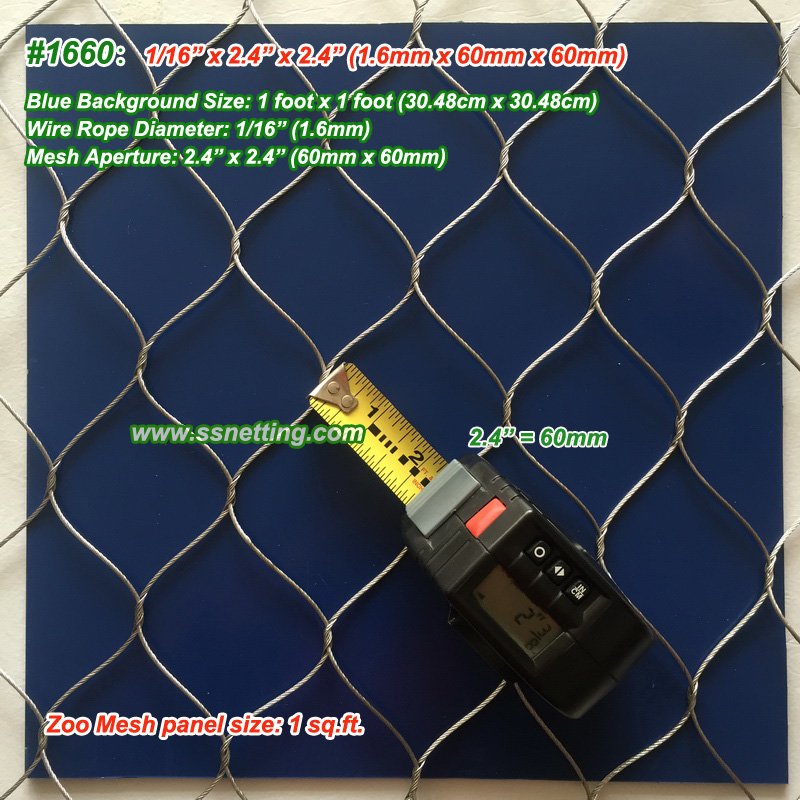

Panel size: 1 sq.ft. of Flexible metal wire mesh code #1660



stainless steel wire rope mesh 1660







▼ Mesh structure: Zoom in carefully look at the Mesh structure


zoo mesh construction



details of stainless steel wire rope mesh.jpg

▼ Mesh edge: Look at the Mesh edge details carefully



edge of zoo mesh details.jpg





▼ Mesh panels: details of flexible metal wire mesh



Mesh panels: details of stainless steel wire rope mesh



▼ Other Application of flexible metal wire mesh



Application of stainless steel wire rope mesh



▼ Installation: flexible metal wire mesh installation details



 installation of stainless steel wire rope mesh

zoo mesh install.jpg



▼ Packing: the stainless steel wire rope woven mesh are with the soft touching, can be stretched, folded, rolled and packed naturally.



stainless steel wire rope woven mesh are with the soft touching, can be stretched, folded, rolled and packed naturally



▼ shipping: many ways you can select



shipping ways.jpg



Leave massage on our web or contact us directly now, we will reply you promptly.
