Stainless Wire Mesh Panels 3/32", 3.6" X 3.6", ( 2.4mm, 90mm X 90mm)

Share to:

The stainless wire mesh panels code #2490: with diameter 3/32"(2.4mm), aperture 3.6" x 3.6" ( 90mm x 90mm) has light weight, high strength, good flexibility, excellent performance in corrosion resistance /fatigue resistance/impact resistance breaking force, strong and durable overall structure, with a service life of more than 30 years..
> by mm details:
Steel wire rope Diameter: 2.4mm
Mesh aperture: 90mm x 90mm
> by inch detdails:
Steel wire rope Diameter: 3/32 inch
Mesh aperture: 3.6 inch x 3.6 inch

  • 2490
Quantity:

INTRODUCTION

Stainless wire mesh panels code 2490:

3/32", 3.6" x 3.6", ( 2.4mm, 90mm x 90mm)


Stainless wire mesh panels also could be called:
Stainless steel CABLE mesh,
Stainless steel wire rope WOVEN mesh,
Stainless steel wire rope KNOTTED mesh,
FLEXIBLE sainless wire mesh panels,
Hand woven wire cable mesh,
Stainless steel ZOO MESH, and so on.



▼The specification details about stainless wire mesh panels code #2490: 3/32", 3.6" x 3.6", ( 2.4mm, 90mm x 90mm):



> by mm details:

Steel wire rope Diameter: 2.4mm

Mesh aperture: 90mm x 90mm

> by inch detdails:

Steel wire rope Diameter: 3/32 inch

Mesh aperture: 3.6 inch x 3.6 inch



▼ More parameter details about Stainless steel zoo mesh code #2490:



Zoomesh material: AISI 304/316 Stainless steel International standard

Min. breaking load (KN):  2.4mm – 4080N

Wire rope construction: 7 x 7 group

Mesh panel size: customers' required sizes,

       Height: 1' to 35';

       Width: 1' x 70'

Mesh color: stainless steel natural color, or black oxide

Packing: the mesh will be rolled and packed in PP woven bag

Country of Origin: China

Domestic shipping: the mesh is available for shipping to all countries outside the China

Shipping way: by sea, by air, or by express

Price term:  we receive FOB, CFR / CIF payment

Price: Contact us to get the newest price quotation



▼ The advantages of Stainless wire mesh panels:



1. Hand woven stainless wire mesh panels with Light weight, high strength, good flexibility, excellent performance in corrosion resistance /fatigue resistance/impact resistance breaking force, strong and durable overall structure, with a service life of more than 30 years.

2.
Hand woven stainless wire mesh panels close to nature, environmentally-friendly, efficient in protection of bird feathers and animal skin, efficient in against nibbles of rodents or other animals, providing a safe and comfortable living conditions.


3. Hand woven stainless wire mesh panels with High perspectivity, luxurious appearance, innovative style, able to blend with the surroundings, equipped with great decorative and protective effects.



▼ The application of Stainless wire mesh panels code #2490: 3/32", 3.6" x 3.6", ( 2.4mm, 90mm x 90mm):



The mesh code #2490 suitable for large animal enclosure fence netting mesh, like Monkey enclosure mesh, Gorilla cage fence, Deer cage fence, Giraffe enclosure mesh, Zebra fencing, Horse enclosure netting, Camel cage fence, and other similar animal fence netting.






Images Introduction

of Stainless wire mesh panels code 2490: 3/32", 3.6" x 3.6", ( 2.4mm, 90mm x 90mm)



The stainless wire mesh panels is a kind of flexible mesh, can be stretch, with the mesh knots will never move and loose.



stainless steel wire rope mesh is a kind of flexible mesh, can be stretch, with the mesh knots will never move and loose



Material of stainless wire mesh panels code 2490: High quality AISI 304, 304L or 316, 316L stainless steel, in line with international standards.



 3. Hand woven stainless steel wire rope mesh with High perspectivity, luxurious appearance, innovative style, able to blend with the surroundings

Chemical composition of stainless steel wire rope mesh



▼ The wire rope diameters of stainless wire mesh panels code 2490:

Diameter = 3/32inch, 2.4mm



stainless steel wire rope mesh-2.4mm



▼ The mesh aperture of stainless wire mesh panels code 2490:

X = 3.6 inch x 3.6 inch,

X = 90mm x 90mm



mesh aperture of stainless steel wire rope mesh

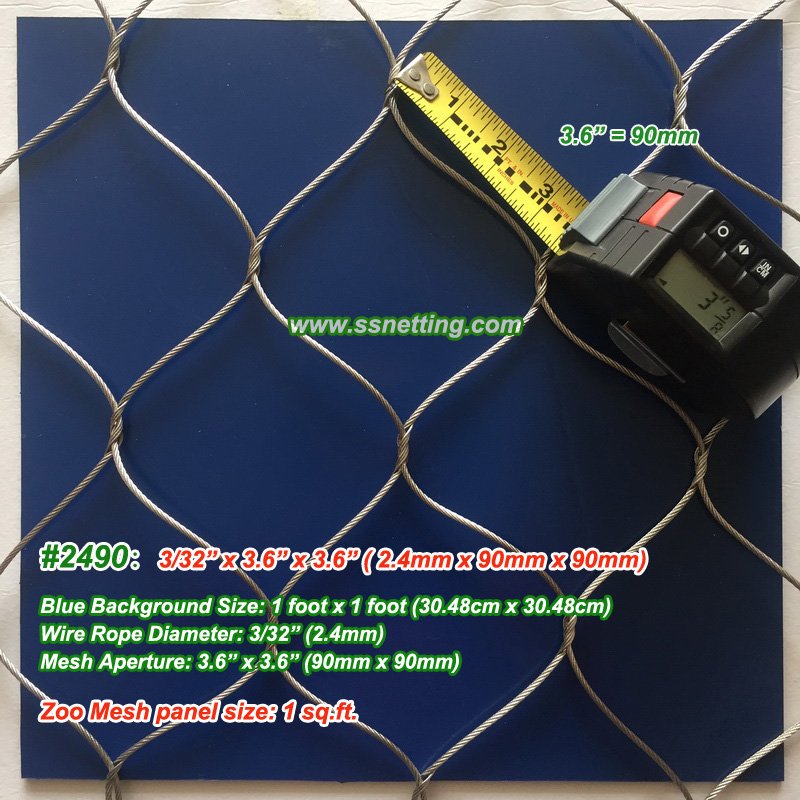

Panel size: 1 sq.ft. of Stainless wire mesh panels code #2490



stainless steel wire rope mesh 2490







▼ Mesh structure: Zoom in carefully look at the Mesh structure


zoo mesh construction



details of stainless steel wire rope mesh.jpg

▼ Mesh edge: Look at the Mesh edge details carefully



edge of zoo mesh details.jpg





▼ Mesh panels: details of stainless wire mesh panels



Mesh panels: details of stainless steel wire rope mesh



▼ Other Application of stainless wire mesh panels



Application of stainless steel wire rope mesh



▼ Installation: stainless wire mesh panels installation details



 installation of stainless steel wire rope mesh

zoo mesh install.jpg



▼ Packing: the stainless steel wire rope woven mesh are with the soft touching, can be stretched, folded, rolled and packed naturally.



stainless steel wire rope woven mesh are with the soft touching, can be stretched, folded, rolled and packed naturally



▼ shipping: many ways you can select



shipping ways.jpg



Leave massage on our web or contact us directly now, we will reply you promptly.
