Stainless Wire Mesh Fencing 3/32", 6" X 6", ( 2.4mm, 152mm X 152mm)

loading

Share to:
sharethis sharing button
The stainless wire mesh fencing code #24152: with diameter 3/32"(2.4mm), aperture 6" x 6" (152mm x 152mm) with light weight, high strength, good flexibility, excellent performance in corrosion resistance /fatigue resistance/impact resistance breaking force, strong and durable overall structure, with a service life of more than 30 years..
>by mm details:
Steel wire rope Diameter: 2.4mm
Mesh aperture: 152mm x 152mm
>by inch detdails:
Steel wire rope Diameter: 3/32 inch
Mesh aperture: 6 inch x 6 inch
  • 24152

Availability:
Quantity:

INTRODUCTION

Stainless wire mesh fencing code 24152:

3/32", 6" x 6", ( 2.4mm, 152mm x 152mm)



▼The specification details about Stainless wire mesh fencing code #24152: 3/32", 6" x 6", ( 2.4mm, 152mm x 152mm):



> by mm details:

Steel wire rope Diameter: 2.4mm

Mesh aperture: 152mm x 152mm

> by inch detdails:

Steel wire rope Diameter: 3/32 inch

Mesh aperture: 6 inch x 6 inch



▼ More parameter details about Stainless steel zoo mesh code #24152:



Zoomesh material: AISI 304/316 Stainless steel International standard

Min. breaking load (KN):  2.4mm – 4080N

Wire rope construction: 7 x 7 group

Mesh panel size: customers' required sizes,

       Height: 1' to 35';

       Width: 1' x 70'

Mesh color: stainless steel natural color, or black oxide

Packing: the mesh will be rolled and packed in PP woven bag

Country of Origin: China

Domestic shipping: the mesh is available for shipping to all countries outside the China

Shipping way: by sea, by air, or by express

Price term:  we receive FOB, CFR / CIF payment

Price: Contact us to get the newest price quotation



▼ The advantages of Stainless wire mesh fencing:



1. Stainless wire mesh fencing has light weight, high strength, good flexibility, excellent performance in corrosion resistance /fatigue resistance/impact resistance breaking force, strong and durable overall structure, with a service life of more than 30 years.

2.
Stainless wire mesh fencing has close to nature, environmentally-friendly, efficient in protection of bird feathers and animal skin, efficient in against nibbles of rodents or other animals, providing a safe and comfortable living conditions.


3. Stainless wire mesh fencing has high perspectivity, luxurious appearance, innovative style, able to blend with the surroundings, equipped with great decorative and protective effects.



▼ The application of Stainless wire mesh fencing code #24152: 3/32", 6" x 6", ( 2.4mm, 152mm x 152mm):



The mesh code #24152 suitable for large animal enclosure fence netting mesh, like Deer cage fence, Giraffe enclosure mesh, Zebra fencing, Horse enclosure netting, Camel cage fence, and other similar animal fence netting.






Images Introduction

of Stainless wire mesh fencing code 24152: 3/32", 6" x 6", ( 2.4mm, 152mm x 152mm)



The stainless wire mesh fencing is a kind of flexible mesh, can be stretch, with the mesh knots will never move and loose.



stainless steel wire rope mesh is a kind of flexible mesh, can be stretch, with the mesh knots will never move and loose



Material of stainless wire mesh fencing code 24152: High quality AISI 304, 304L or 316, 316L stainless steel, in line with international standards.



Stainless steel wire rope mesh has light weight, high strength, good flexibility, excellent performance in corrosion resistance /fatigue resistance/impact resistance breaking force

Chemical composition of stainless steel wire rope mesh



▼ The wire rope diameters of stainless wire mesh fencing code 24152:

Diameter = 3/32inch, 2.4mm



stainless steel wire rope mesh-2.4mm



▼ The mesh aperture of stainless wire mesh fencing code 24152:

X = 6 inch x 6 inch,

X = 152mm x 152mm



mesh aperture of stainless steel wire rope mesh

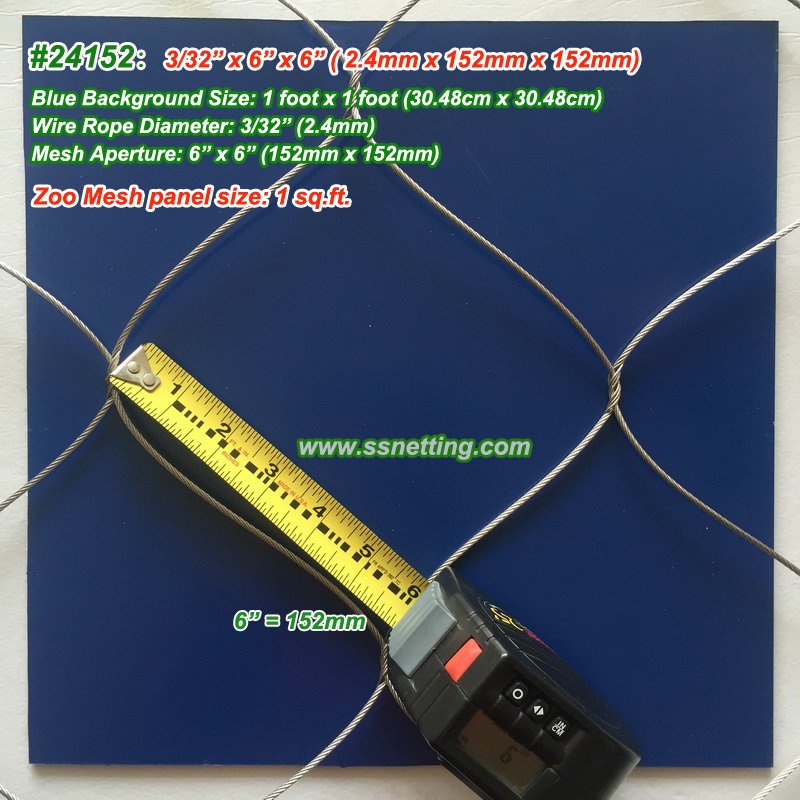

Panel size: 1 sq.ft. of stainless wire mesh fencing code #24152



stainless steel wire rope mesh 24152







▼ Mesh structure: Zoom in carefully look at the Mesh structure


zoo mesh construction



details of stainless steel wire rope mesh.jpg

▼ Mesh edge: Look at the Mesh edge details carefully



edge of zoo mesh details.jpg





▼ Mesh panels: details of stainless wire mesh fencing



Mesh panels: details of stainless steel wire rope mesh



▼ Other Application of stainless wire mesh fencing



Application of stainless steel wire rope mesh



▼ Installation: stainless wire mesh fencing installation details



 installation of stainless steel wire rope mesh

zoo mesh install.jpg



▼ Packing: the stainless steel wire rope woven mesh are with the soft touching, can be stretched, folded, rolled and packed naturally.



stainless steel wire rope woven mesh are with the soft touching, can be stretched, folded, rolled and packed naturally



▼ shipping: many ways you can select



shipping ways.jpg



Leave massage on our web or contact us directly now, we will reply you promptly.
