Stainless Wire Mesh Panels 3/32", 4" x 4", ( 2.4mm, 102mm x 102mm)

Share to:

The stainless wire mesh panels code #24102 suitable for large animal enclosure fence netting mesh, like, Gorilla cage fence, Deer cage fence, giraffe cage fence, fox enclosure mesh, and other similar animal fence netting.
The specification details about Stainless steel wire rope mesh code #24102: 3/32", 4" x 4", ( 2.4mm, 102mm x 102mm):
> by mm details:
Steel wire rope Diameter: 2.4mm
Mesh aperture: 102mm x 102mm
> by inch detdails:
Steel wire rope Diameter: 3/32 inch
Mesh aperture: 4 inch x 4 inch

  • 24102
Quantity:



INTRODUCTION

Stainless wire mesh panels code 24102:
3/32", 4" x 4", ( 2.4mm, 102mm x 102mm)


Stainless wire mesh panels also could be called:
Stainless steel CABLE mesh,
Stainless steel wire rope WOVEN mesh,
Stainless steel wire rope KNOTTED mesh,
FLEXIBLE stainless wire mesh panels,
Hand woven wire cable mesh,
Stainless steel ZOO MESH, and so on.



▼The specification details about Stainless wire mesh panels code #24102: 3/32", 4" x 4", ( 2.4mm, 102mm x 102mm):



> by mm details:

Steel wire rope Diameter: 2.4mm

Mesh aperture: 102mm x 102mm

> by inch detdails:

Steel wire rope Diameter: 3/32 inch

Mesh aperture: 4 inch x 4 inch



▼ More parameter details about Stainless steel zoo mesh code #24102:



Zoomesh material: AISI 304/316 Stainless steel International standard

Min. breaking load (KN):  2.4mm – 4080N

Wire rope construction: 7 x 7 group

Mesh panel size:

customers’ required sizes,

Height: 1' to 35';

Width: 1' x 70'

Mesh color: stainless steel natural color, or black oxide

Packing: the mesh will be rolled and packed in PP woven bag

Country of Origin: China

Domestic shipping: the mesh is available for shipping to all countries outside the China

Shipping way: by sea, by air, or by express

Price term:  we receive FOB, CFR / CIF payment



▼ The advantages of Stainless wire mesh panels:



1. Stainless steel wire rope zoo mesh has Light weight, high strength, good flexibility, excellent performance in corrosion resistance /fatigue resistance/impact resistance breaking force, strong and durable overall structure, with a service life of more than 30 years.

2.
Stainless steel wire rope zoo mesh has Close to nature, environmentally-friendly, efficient in protection of bird feathers and animal skin, efficient in against nibbles of rodents or other animals, providing a safe and comfortable living conditions.


3. Stainless steel wire rope zoo mesh has High perspectivity, luxurious appearance, innovative style, able to blend with the surroundings, equipped with great decorative and protective effects.


▼ The application of Stainless wire mesh panels code #24102: 3/32", 4" x 4", ( 2.4mm, 102mm x 102mm):



The mesh code #24102 suitable for large animal enclosure fence netting mesh, like, Gorilla cage fenceDeer cage fence, giraffe cage fence, fox enclosure mesh, and other similar animal fence netting.





Images introduction
of Stainless wire mesh panels code 24102: 3/32", 4" x 4", ( 2.4mm, 102mm x 102mm)



 The stainless wire mesh panels is a kind of flexible mesh, can be stretch, with the mesh knots will never move and loose.



The stainless steel wire rope mesh is a kind of flexible mesh, can be stretch, with the mesh knots will never move and loose.



▼ Material of stainless wire mesh panels code 24102:

AISI 304 or 316 stainless steel



Stainless steel wire rope zoo mesh has Light weight, high strength, good flexibility, excellent performance in corrosion resistance

zoo mesh's Chemical composition

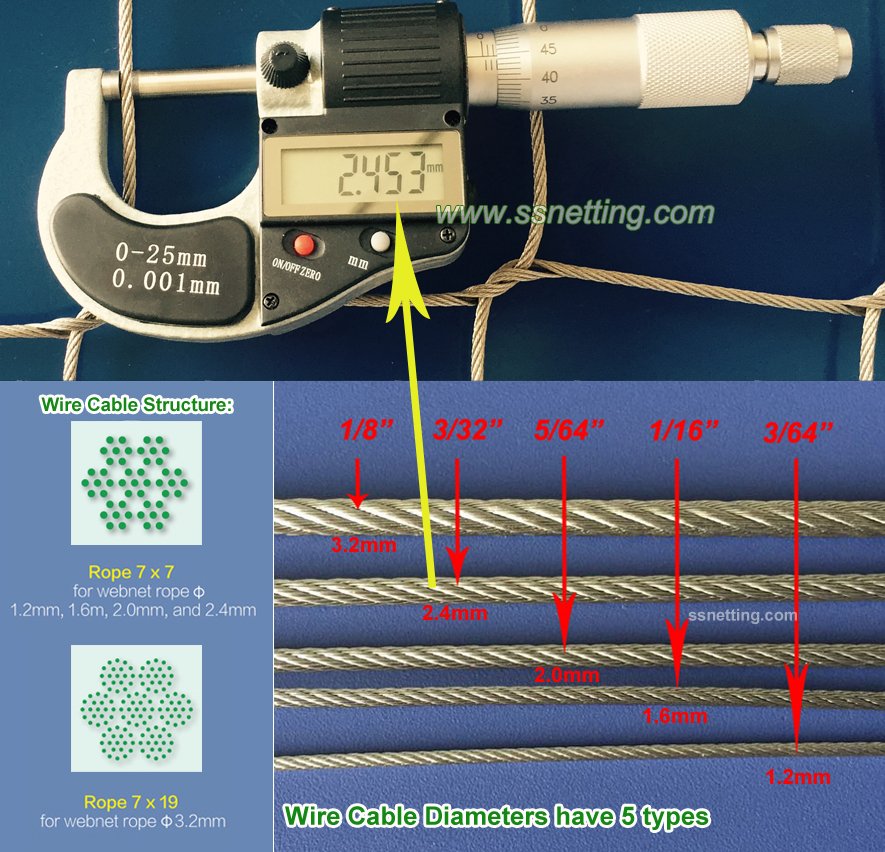

▼ The wire rope diameters of stainless wire mesh panels code #24102: 3/32", 4" x 4", ( 2.4mm, 102mm x 102mm):

Diameter = 3/32inch, 2.4mm



stainless steel wire rope mesh-2.4mm



▼ The mesh aperture of stainless wire mesh panels 24102: 3/32", 4" x 4", ( 2.4mm, 102mm x 102mm):

X = 4 inch x 4 inch, 102mm x 102mm



aperture of stainless steel wire rope mesh 3 inch.jpg

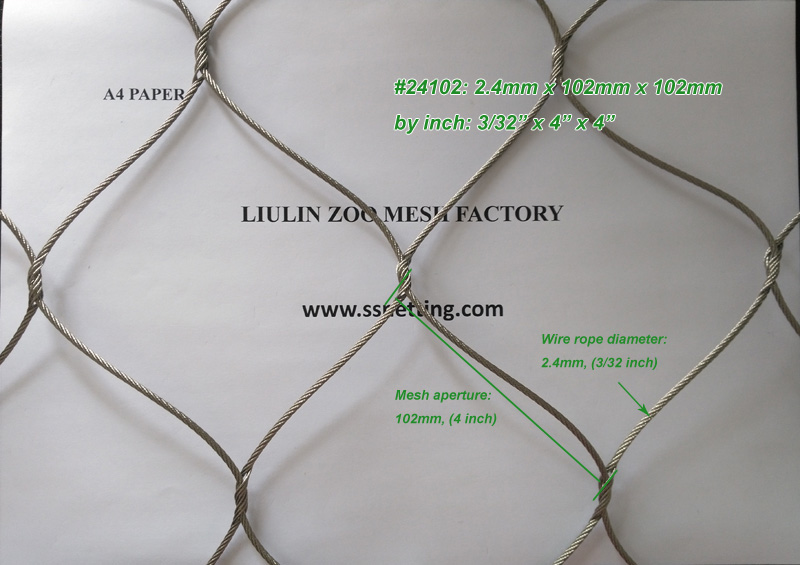

▼ Comparison of the stainless wire mesh panels code #24102 with A4 paper:

Download the picture for print: stainless steel rope mesh #24102.pdf



Comparison of the stainless steel wire rope mesh code #24102 with A4 paper





▼ 1sq.ft. mesh panel of stainless steel wire rope woven mesh code 24102

stainless steel wire rope mesh-24102-800



▼ Mesh panels of stainless wire mesh panels



stainless steel wire rope mesh panels.jpg



▼ Zoo mesh in carefully look at the Mesh structure



stainless steel wire rope Mesh structure.jpg



details of stainless steel wire rope mesh



▼ Look at the Mesh edge details carefully



edge of stainless steel wire rope Mesh.jpg



▼ Other Application of stainless wire mesh panels



Application of stainless steel wire rope mesh.jpg



▼ The installation of stainless wire mesh panels



 installation of wire rope mesh 3 inch.jpg

install detail the wire rope mesh.jpg



▼ The stainless steel wire rope woven mesh are with the soft touching, can be stretched, folded, rolled and packed naturally.



rolling and packing the stainless steel rope mesh.jpg



▼ shipping ways you can select



shipping ways of wire rope netting mesh.jpg



Leave massage on our web or contact us directly now, we will reply you promptly.
