Stainless Wire Netting 1/8", 4" X 4", ( 3.2mm, 102mm X 102mm)

Share to:

The stainless wire netting code #32102: with diameter 1/8"(3.2mm), aperture 4" x 4" (102mm x 102mm) suitable for large ferocious animal enclosure fence netting mesh, like Lion Cage Mesh, Tiger Cage Enclosure, Leopard Cage Fence, Gorilla Cage Fence, and other similar animal fence netting.
> by mm details:
Steel wire rope Diameter: 3.2mm
Mesh aperture: 102mm x 102mm
> by inch detdails:
Steel wire rope Diameter: 1/8 inch
Mesh aperture: 4 inch x 4 inch

  • 32102
Quantity:



INTRODUCTION

Stainless wire netting code 32102:
1/8", 4" x 4", ( 3.2mm, 102mm x 102mm)



Stainless wire netting also could be called:
Stainless steel CABLE mesh,
Stainless steel wire rope WOVEN mesh,
Stainless steel wire rope KNOTTED mesh,
FLEXIBLE stainless wire netting,
Hand woven wire cable mesh,
Stainless steel ZOO MESH, and so on.



▼The specification details about Stainless wire netting code #32102: 1/8", 4" x 4", ( 3.2mm, 102mm x 102mm):



> by mm details:

Steel wire rope Diameter: 3.2mm

Mesh aperture: 102mm x 102mm

> by inch detdails:

Steel wire rope Diameter: 1/8 inch

Mesh aperture: 4 inch x 4 inch



▼ More parameter details about Stainless steel zoo mesh code #32102:



Zoomesh material: AISI 304/316 Stainless steel International standard

Min. breaking load (KN):  3.2mm – 7320N

Wire rope construction: 7 x 19 group

Mesh panel size:

customers’ required sizes,

Height: 1' to 35';

Width: 1' x 70'

Mesh color: stainless steel natural color, or black oxide

Packing: the mesh will be rolled and packed in PP woven bag

Country of Origin: China

Domestic shipping: the mesh is available for shipping to all countries outside the China

Shipping way: by sea, by air, or by express

Price term:  we receive FOB, CFR / CIF payment



▼ The advantages of Stainless wire netting:



1. Light weight, high strength, good flexibility, excellent performance in corrosion resistance /fatigue resistance/impact resistance breaking force, strong and durable overall structure, with a service life of more than 30 years.

2. Close to nature, environmentally-friendly, efficient in protection of bird feathers and animal skin, efficient in against nibbles of rodents or other animals, providing a safe and comfortable living conditions.

3. High perspectivity, luxurious appearance, innovative style, able to blend with the surroundings, equipped with great decorative and protective effects.


▼ The application of Stainless wire netting code #32102: 1/8", 4" x 4", ( 3.2mm, 102mm x 102mm):



The mesh code #32102 suitable for large ferocious animal enclosure fence netting mesh, like Lion Cage MeshTiger Cage EnclosureLeopard Cage FenceGorilla Cage Fence, and other similar animal fence netting.





Images introduction
of Stainless wire netting code 32102: 1/8", 4" x 4", ( 3.2mm, 102mm x 102mm)



The stainless wire netting is a kind of flexible mesh, can be stretch, with the mesh knots will never move and loose.



stainless steel wire rope mesh is a kind of flexible mesh



Material of stainless wire netting code 32102: AISI 304 or 316 stainless steel



Material of stainless steel wire rope mesh code 32102: AISI 304 or 316 stainless steel

Chemical composition of stainless steel cable woven mesh

▼ The wire rope diameters of stainless wire netting 1/8", 4" x 4", ( 3.2mm, 102mm x 102mm):

Diameter = 1/8inch, 3.2mm



stainless steel wire rope mesh-3.2mm



▼ The mesh aperture of stainless wire netting 1/8", 4" x 4", ( 3.2mm, 102mm x 102mm):

X = 4inch, 102mm x 102mm



mesh aperture of stainless steel wire rope mesh

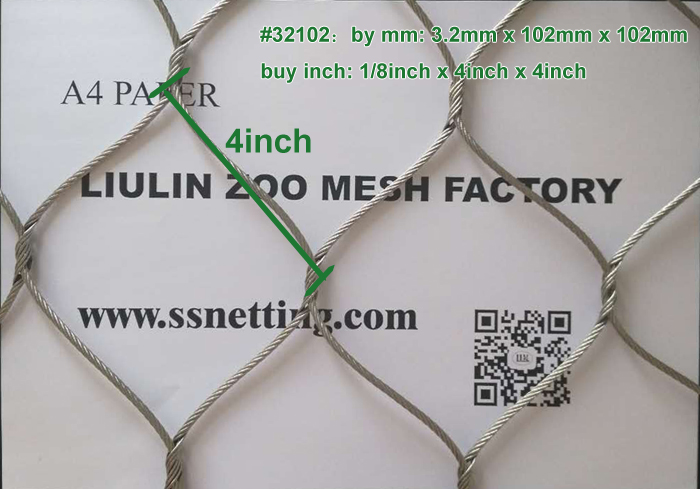

▼ Comparison of the stainless wire netting code #32102 with A4 paper:

Download the picture for print: Stainless steel wire rope mesh code 32102.pdf



Comparison of the stainless steel wire rope mesh code #32102 with A4 paper



1 sq.ft. mesh panel of stainless steel wire rope woven mesh code 32102:

stainless steel wire rope mesh-32102-800

▼ Mesh panels of stainless wire netting



ZOO MESH panels measurement.jpg



▼ Zoom in carefully look at the Mesh structure



Zoom in carefully look at the Mesh structure



details of stainless steel wire rope mesh



▼ Look at the Mesh edge details carefully



edge of zoo mesh details.jpg



▼ Other Application of stainless wire netting



Application of stainless steel wire rope mesh



▼ The installation of stainless wire netting



 installation of stainless steel wire rope mesh

zoo mesh install.jpg



▼ The stainless steel wire rope woven mesh are with the soft touching, can be stretched, folded, rolled and packed naturally.



stainless steel wire rope woven mesh are with the soft touching, can be stretched, folded, rolled and packed naturally



▼ shipping ways you can select



shipping ways.jpg



Leave massage on our web or contact us directly now, we will reply you in 24 hours.
