Stainless Steel Wire Mesh 5/64", 3" X 3", ( 2.0mm, 76mm X 76mm)

Share to:

The stainless steel wire mesh code #2076 suitable for Monkey enclosure mesh, large animal fence, also can be used for large bird cage netting, like ostrich fence;and other similar animal fence netting.
The specification details about Stainless steel wire rope mesh code 2076: 5/64", 3" x 3", ( 2.0mm, 76mm x 76mm):
> by mm details:
Steel wire rope Diameter: 2.0mm
Mesh aperture: 76mm x 76mm
> by inch detdails:
Steel wire rope Diameter: 5/64 inch
Mesh aperture: 3 inch x 3 inch

  • 2076
Quantity:



INTRODUCTION

Stainless steel wire mesh code 2076:
5/64", 3" x 3", ( 2.0mm, 76mm x 76mm)



Stainless steel wire mesh also could be called:
Stainless steel CABLE mesh,
Stainless steel wire rope WOVEN mesh,
Stainless steel wire rope KNOTTED mesh,
FLEXIBLE stainless steel wire mesh,
Hand woven wire cable mesh,
Stainless steel ZOO MESH, and so on.



▼The specification details about Stainless steel wire mesh code 2076: 5/64", 3" x 3", ( 2.0mm, 76mm x 76mm):



> by mm details:

Steel wire rope Diameter: 2.0mm

Mesh aperture: 76mm x 76mm

> by inch detdails:

Steel wire rope Diameter: 5/64 inch

Mesh aperture: 3 inch x 3 inch



▼ More parameter details about Stainless steel zoo mesh code #2076: 5/64", 3" x 3", ( 2.0mm, 76mm x 76mm):



Zoomesh material: AISI 304/316 Stainless steel International standard

Min. breaking load (KN):  2.0mm – 3100N

Wire rope construction: 7 x 7 group

Mesh panel size:

customers’ required sizes,

Height: 1' to 35';

Width: 1' x 70'

Mesh color: stainless steel natural color, or black oxide

Packing: the mesh will be rolled and packed in PP woven bag

Country of Origin: China

Domestic shipping: the mesh is available for shipping to all countries outside the China

Shipping way: by sea, by air, or by express

Price term:  we receive FOB, CFR / CIF payment



▼ The advantages of Stainless steel wire mesh:



1. Light weight, high strength, good flexibility, excellent performance in corrosion resistance /fatigue resistance/impact resistance breaking force, strong and durable overall structure, with a service life of more than 30 years.

2. Close to nature, environmentally-friendly, efficient in protection of bird feathers and animal skin, efficient in against nibbles of rodents or other animals, providing a safe and comfortable living conditions.

3. High perspectivity, luxurious appearance, innovative style, able to blend with the surroundings, equipped with great decorative and protective effects.


▼ The application of Stainless steel wire mesh code 2076: 5/64", 3" x 3", ( 2.0mm, 76mm x 76mm):



The mesh code #2076 suitable for Monkey enclosure meshlarge animal fencealso can be used for large bird cage netting, like ostrich fence;and other similar animal fence netting.




Images introduction
of Stainless steel wire mesh code 2076: 5/64", 3" x 3", ( 2.0mm, 76mm x 76mm)



 The stainless steel wire mesh is a kind of flexible mesh, can be stretch, with the mesh knots will never move and loose.



Images introduction of Stainless steel wire rope mesh code 2076: 5/64



▼ Material of stainless steel wire mesh code 2076:

AISI 304 or 316 stainless steel



AISI 304 or 316 stainless steel of stainless steel wire rope mesh

stainless steel zoo mesh Chemical composition



▼ The wire rope diameters of stainless steel wire mesh 5/64", 3" x 3", ( 2.0mm, 76mm x 76mm):

Diameter = 5/64inch, 2.0mm



stainless steel wire rope mesh-2.0mm



▼ The mesh aperture of stainless steel wire mesh 5/64", 3" x 3", ( 2.0mm, 76mm x 76mm):

X = 3 inch x 3 inch, 76mm x 76mm



The mesh aperture of stainless steel wire rope mesh 5/64

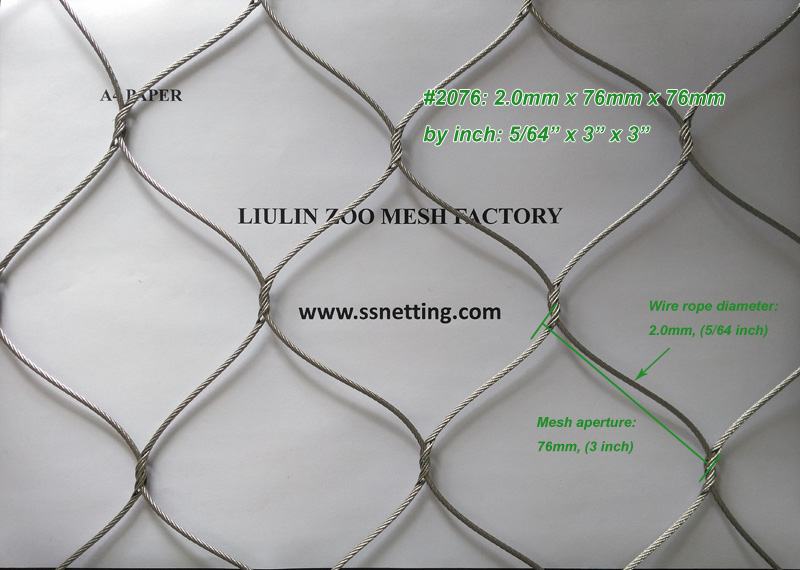

▼ Comparison of the stainless steel wire mesh code #2076 with A4 paper:

Download the picture for print: stainless steel rope mesh #2076.pdf



stainless steel wire rope mesh 2076-800

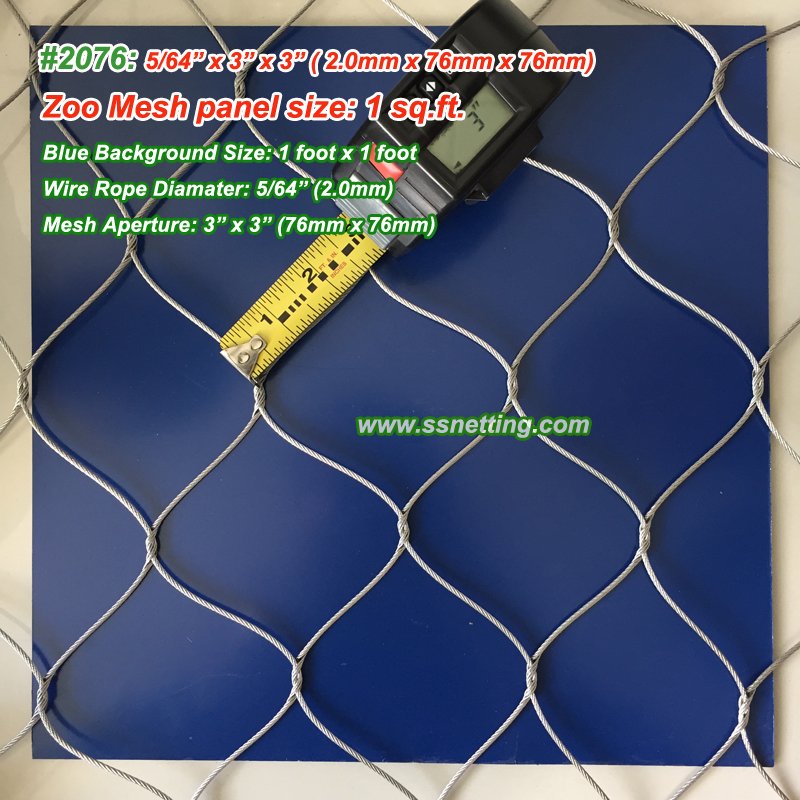

▼ 1 sq.ft. mesh panel of stainless steel wire mesh code 2076

stainless steel wire rope mesh-2076+-800



▼ Mesh panels of stainless steel wire mesh



Mesh panels of stainless steel wire rope mesh



▼ Zoo mesh in carefully look at the Mesh structure



Zoo mesh in carefully look at the Mesh structure



details of stainless steel wire rope mesh



▼ Look at the Mesh edge details carefully



edge of wire rope Mesh.jpg



▼ Other Application of stainless steel wire mesh



Application of stainless steel wire rope mesh.jpg



▼ The installation of stainless steel wire mesh



 installation of wire rope mesh 3 inch.jpg

install detail the wire rope mesh.jpg



▼ The stainless steel wire rope woven mesh are with the soft touching, can be stretched, folded, rolled and packed naturally.



rolling and packing the stainless steel rope mesh.jpg



▼ shipping ways you can select



shipping ways of wire rope netting mesh.jpg



Leave massage on our web or contact us directly now, we will reply you promptly.
