Stainless Steel Mesh 1/16", 1" X 1", (1.6mm, 25.4mm X 25.4mm)

Share to:

The Stainless steel mesh code 1625 suitable for birds cage fencing, often used for parrots cage netting, can prevent the small birds out of the cage, and prevent the other animals like weasel go in the cage. The other small birds like sparrow also can't through in.
> by mm details:
Steel wire rope Diameter: 1.6mm
Mesh aperture: 25.4mm x 25.4mm
> by inch detdails:
Steel wire rope Diameter: 1/16 inch
Mesh aperture: 1 inch x 1 inch

  • 1625
Quantity:



INTRODUCTION

Stainless steel mesh code 1625:
1/16", 1" x 1"
 ( 1.6mm, 25.4mm x 25.4mm )



Stainless steel mesh also could be called:
Stainless steel CABLE mesh,
Stainless steel wire rope WOVEN mesh,
Stainless steel wire rope KNOTTED mesh,
FLEXIBLE stainless steel mesh,
Hand woven wire cable mesh,
Stainless steel ZOO MESH, and so on.



▼ The details about Stainless steel mesh 1/16", 1" x 1", ( 1.6mm, 25.4mm x 25.4mm ) are as follow:



> by mm details:

Steel wire rope Diameter: 1.6mm

Mesh aperture: 25.4mm x 25.4mm

> by inch detdails:

Steel wire rope Diameter: 1/16 inch

Mesh aperture: 1 inch x 1 inch



▼ More details about Stainless steel zoo mesh 1/16", 1" x 1", ( 1.6mm, 25.4mm x 25.4mm ):



Zoomesh material: AISI 304/316 Stainless steel International standard

Min. breaking load (KN):  1.6mm – 2120N

Wire rope construction: 7 x 7 group

Mesh panel size:

customers’ required sizes,

Height: 1' to 35';

Width: 1' x 70'

Mesh color: stainless steel natural color, or black oxide

Packing: the mesh will be rolled and packed in PP woven bag

Country of Origin: China

Domestic shipping: the mesh is available for shipping to all countries outside the China

Shipping way: by sea, by air, or by express

Price term:  we receive FOB, CFR / CIF payment


▼ The advantages of Stainless steel mesh:



1. Stainless steel wire rope woven mesh with Light weight, high strength, good flexibility, excellent performance in corrosion resistance /fatigue resistance/impact resistance breaking force, strong and durable overall structure, with a service life of more than 30 years.

2.
Stainless steel wire rope woven mesh close to nature, environmentally-friendly, efficient in protection of bird feathers and animal skin, efficient in against nibbles of rodents or other animals, providing a safe and comfortable living conditions.


3. Stainless steel wire rope woven mesh with High perspectivity, luxurious appearance, innovative style, able to blend with the surroundings, equipped with great decorative and protective effects.



▼ The application of  Stainless steel mesh of mesh code 1625:  1/16", 1" x 1" , ( 1.6mm, 25.4mm x 25.4mm )



The Stainless steel mesh code 1625 also suitable for birds cage fencing, often used for parrots cage netting, can prevent the small birds out of the cage, and prevent the other animals like weasel go in the cage. The other small birds like sparrow also can't through in.




Images Introduction
of Stainless steel mesh 1/16", 1" x 1", ( 1.6mm, 25.4mm x 25.4mm )



 The stainless steel mesh is a kind of flexible mesh, can be stretch, with the mesh knots will never move and loose.



stainless steel zoo mesh 1 inch.jpg



▼ Material of stainless steel mesh 1/16", 1" x 1", ( 1.6mm, 25.4mm x 25.4mm ):

AISI 304 or 316 stainless steel



stainless steel material wire rope mesh MATERIAL GROUP.jpg

Chemical composition



▼ The wire rope diameters of stainless steel mesh code #1625: 1/16", 1" x 1", ( 1.6mm, 25.4mm x 25.4mm ):

Diameter = 1/16 inch, 1.6mm



stainless steel wire rope mesh-1.6mm



▼ The mesh aperture of stainless steel mesh code 1625: 3/64", 1" x 1", ( 1.6mm, 25.4mm x 25.4mm ):

X = 1 inch x 1 inch, 25.4mm x 25.4mm



1 inch stainless steel wire rope mesh.jpg

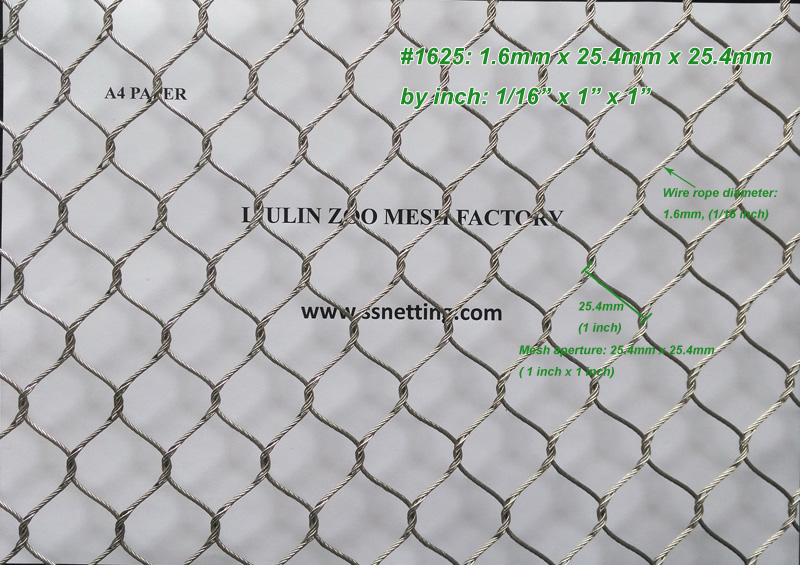

▼ Comparison of the stainless steel mesh 1/16", 1" x 1" with A4 paper:

Download the picture for print: stainless steel rope mesh #1625.pdf



stainless steel wire rope mesh 1625

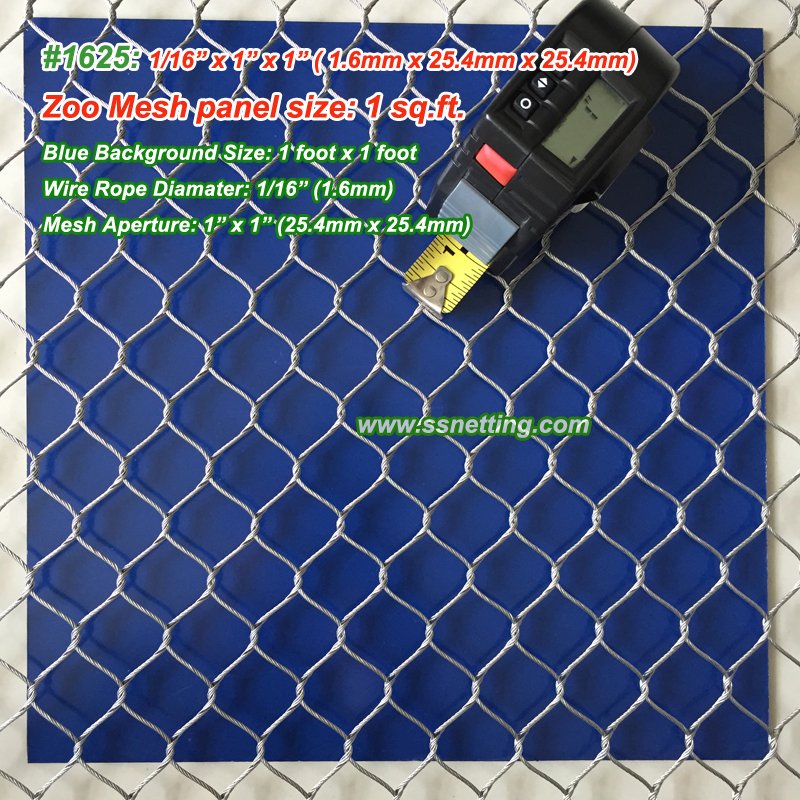

1 sq.ft mesh panel of stainless steel mesh code #1625



stainless steel wire rope mesh-1625-800



▼ Mesh panels of stainless steel mesh



zoo mesh panels and size.jpg



▼ Zoo mesh in carefully look at the Mesh structure



the surface of wire rope mesh.jpg



details of stainless steel wire rope mesh



▼ Look at the Mesh edge details carefully



edge of wire rope Mesh.jpg



▼ Other Application of stainless steel mesh



Application of stainless steel wire rope mesh.jpg



▼ The installation of stainless steel mesh



 installation of wire rope mesh 3 inch.jpg

install detail the wire rope mesh.jpg



▼ The stainless steel wire rope woven mesh are with the soft touching, can be stretched, folded, rolled and packed naturally.



rolling and packing the stainless steel rope mesh.jpg



▼ shipping ways you can select



shipping ways of wire rope netting mesh.jpg



Leave massage on our web or contact us directly now, we will reply you promptly.
